Aerostar 2WD V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
>>
Electronic Brake Control Module
Electronic Brake Control Module

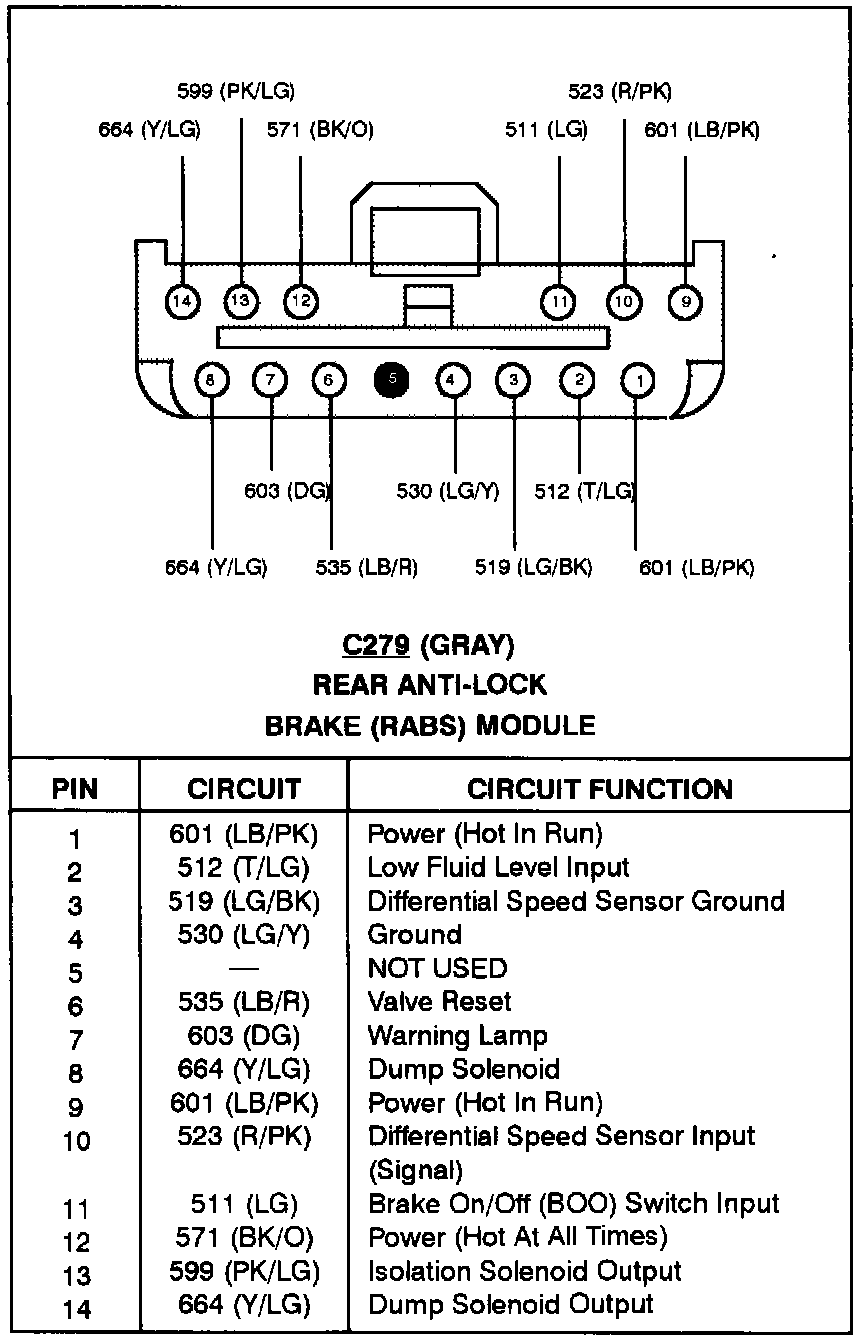

Rear Anti-lock Brake System Module:
