Home >> Ford >> 1997 >> Aerostar 2WD V6-3.0L VIN U >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations

Fuse: Locations

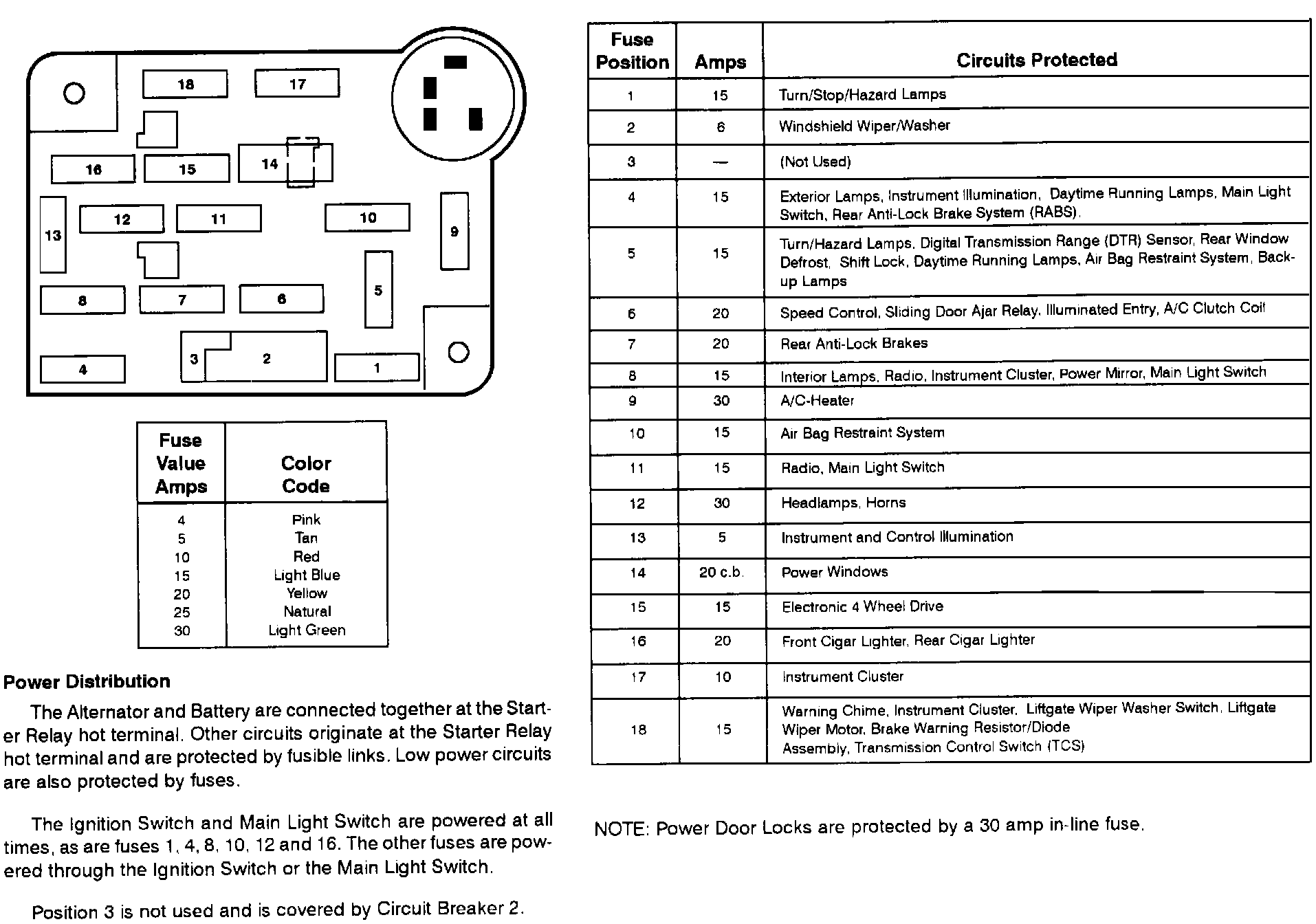

Fuse Panel:
