Electronic Brake Control Module: Service and Repair

REMOVAL
1. Disconnect the wiring harness from the RABS it connector by depressing the plastic tab on the connector and pulling the connector off.
2. Remove the two nuts that retain the anti-lock electronic control module to the instrument panel anti-shake brace.
3. Remove the anti-lock electronic control module from the anti-shake brace.

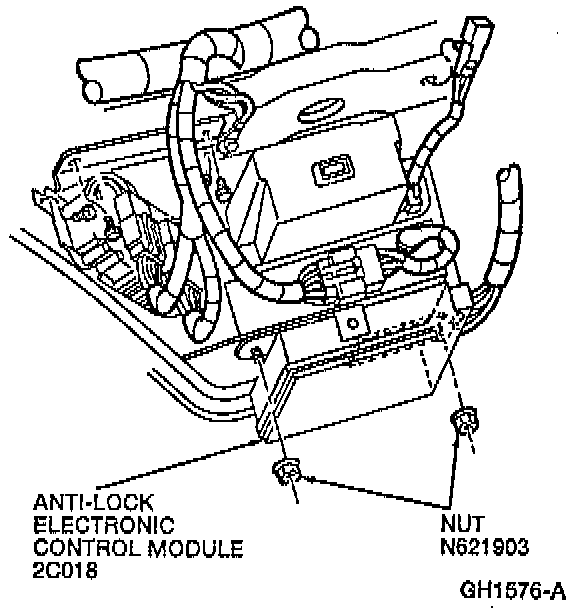

Anti-Lock Electronic Control Module:

INSTALLATION
1. Position the anti-lock electronic control module on the anti-shake brace.
2. Install the two nuts that hold the anti-lock electronic control module to the anti-shake brace.
3. Connect the wiring harness to the anti-lock electronic control module.
4. Check the system for proper operation.
