Crankshaft Main Bearing

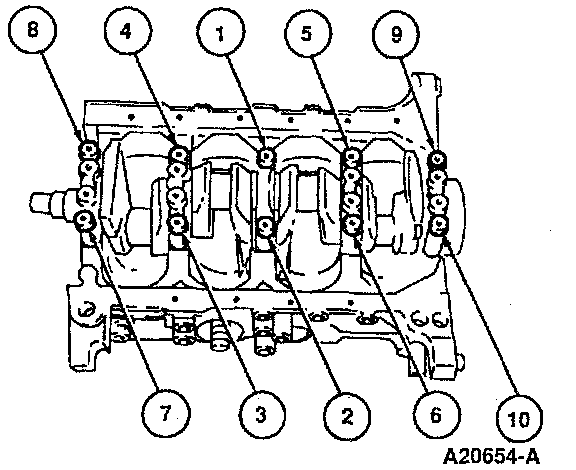

TIGHTENING SEQUENCE/SPECIFICATIONS
Tighten the main bearing caps in sequence to 54-59 Nm (40-43 ft. lbs.).
DIMENSIONS
Clearance: 0.018-0.036 mm (0.0007-0.0014 inch).
Limit: 0.10 mm (0.0039 inch).
TIGHTENING SEQUENCE/SPECIFICATIONS
Tighten the main bearing caps in sequence to 54-59 Nm (40-43 ft. lbs.).
DIMENSIONS
Clearance: 0.018-0.036 mm (0.0007-0.0014 inch).
Limit: 0.10 mm (0.0039 inch).
