Cruise Control Switch: Service and Repair

REMOVAL

WARNING
- ALWAYS WEAR SAFETY GLASSES WHEN REMOVING AN AIR BAG.
- CARRY A LIVE AIR BAG WITH THE BAG AND TRIM COVER POINTED AWAY FROM YOUR BODY. AN ACCIDENTAL DEPLOYMENT WILL THEN DEPLOY WITH A MINIMAL CHANCE OF INJURY.
- PLACE A LIVE AIR BAG ON A BENCH OR OTHER SURFACE WITH THE TRIM COVER UP.
- NEVER PROBE THE CONNECTORS ON THE AIR BAGS. DOING SO CAN RESULT IN AIR BAG DEPLOYMENT WHICH COULD RESULT IN PERSONAL INJURY.
- TO AVOID ACCIDENTAL DEPLOYMENT AND POSSIBLE INJURY, THE BACKUP POWER SUPPLY MUST BE DEPLETED BEFORE REMOVING OR REPLACING ANY AIR BAG SYSTEM COMPONENTS. TO DEPLETE THE BACKUP POWER SUPPLY ENERGY, DISCONNECT THE BATTERIES AND WAIT ONE MINUTE.

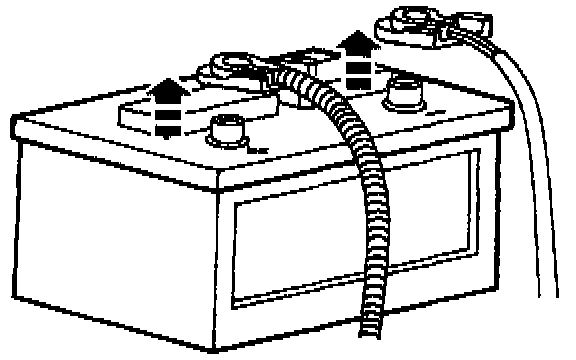

1. Disconnect the battery cables.
1 Disconnect the battery ground cable. On vehicles equipped with dual batteries use proper disconnect procedures. Dual Battery Disconnect
2 Disconnect the battery to starter relay cable and wait one minute for the backup power supply to be depleted.





2. Remove the driver side air bag module.
1 Remove two air bag module screws.
2 Disconnect the air bag sliding contact electrical connector
3 Disconnect the horn electrical connector.
4 Remove the driver side air bag module.

WARNING: PLACE THE AIR BAG MODULE ON BENCH WITH THE TRIM COVER FACING UP.





3. Remove the speed control actuator switch.
1 Release the four (A) speed control actuator switch clips and (B) remove the speed control actuator switch.
2 Disconnect the speed control actuator switches electrical connector.





INSTALLATION

1. Follow the removal procedure in reverse order.

NOTE
- On vehicles equipped with dual batteries, use proper reconnect procedures. Dual Battery Disconnect
- When the batteries are disconnected and reconnected, some abnormal drive symptoms may occur while the Powertrain Control Module (PCM) relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.
