Operation CHARM: Car repair manuals for everyone.
Home >> Ford >> 1997 >> E 150 1/2 Ton Van V6-4.2L VIN 2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

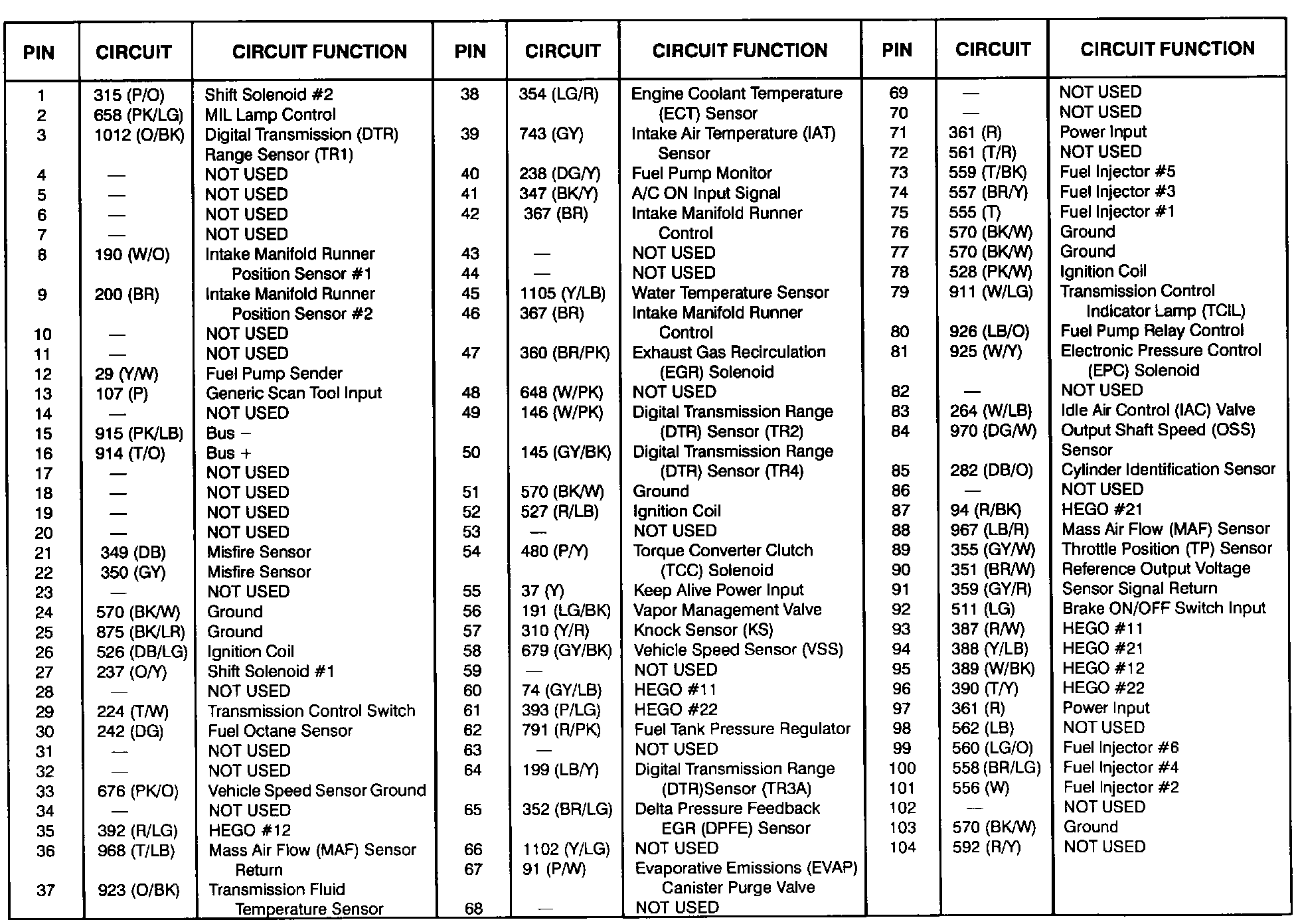

Powertrain Control Module (Part 1 Of 2):

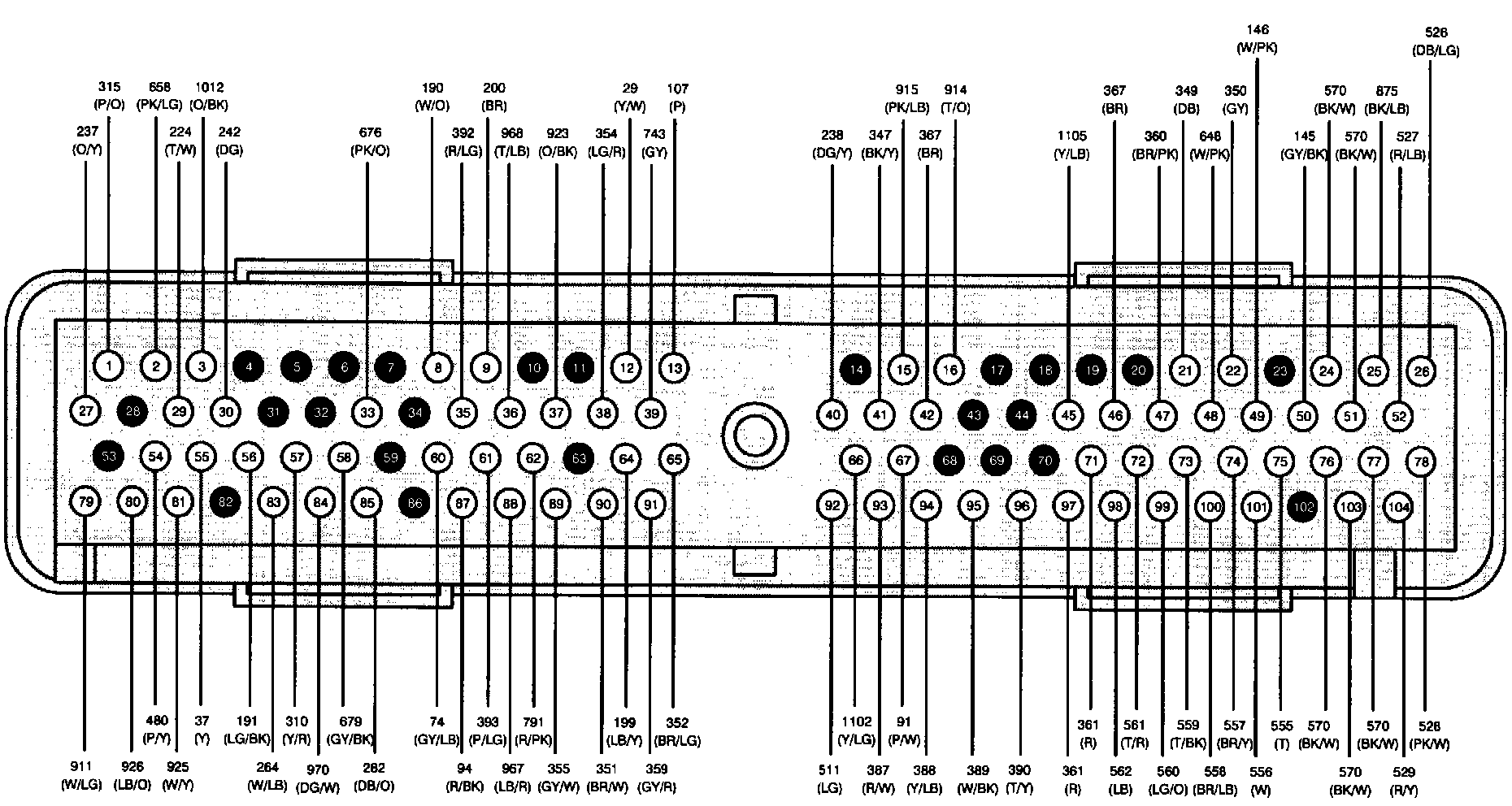

Powertrain Control Module (Part 2 Of 2):
