Home >> Ford >> 1997 >> E 150 1/2 Ton Van V6-4.2L VIN 2 >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Testing and Inspection >> System Schematic >> Vacuum/Motor Flow Chart >> Heat Only

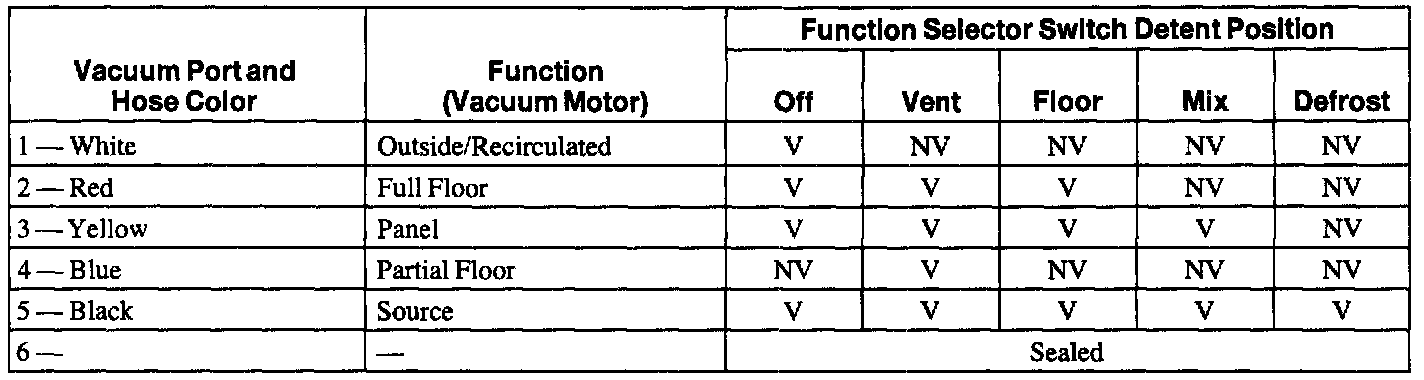

Heat Only
