EGR Backpressure Transducer: Service and Repair

REMOVAL





NOTE: The generator must first be removed for access to the EGR backpressure transducer.

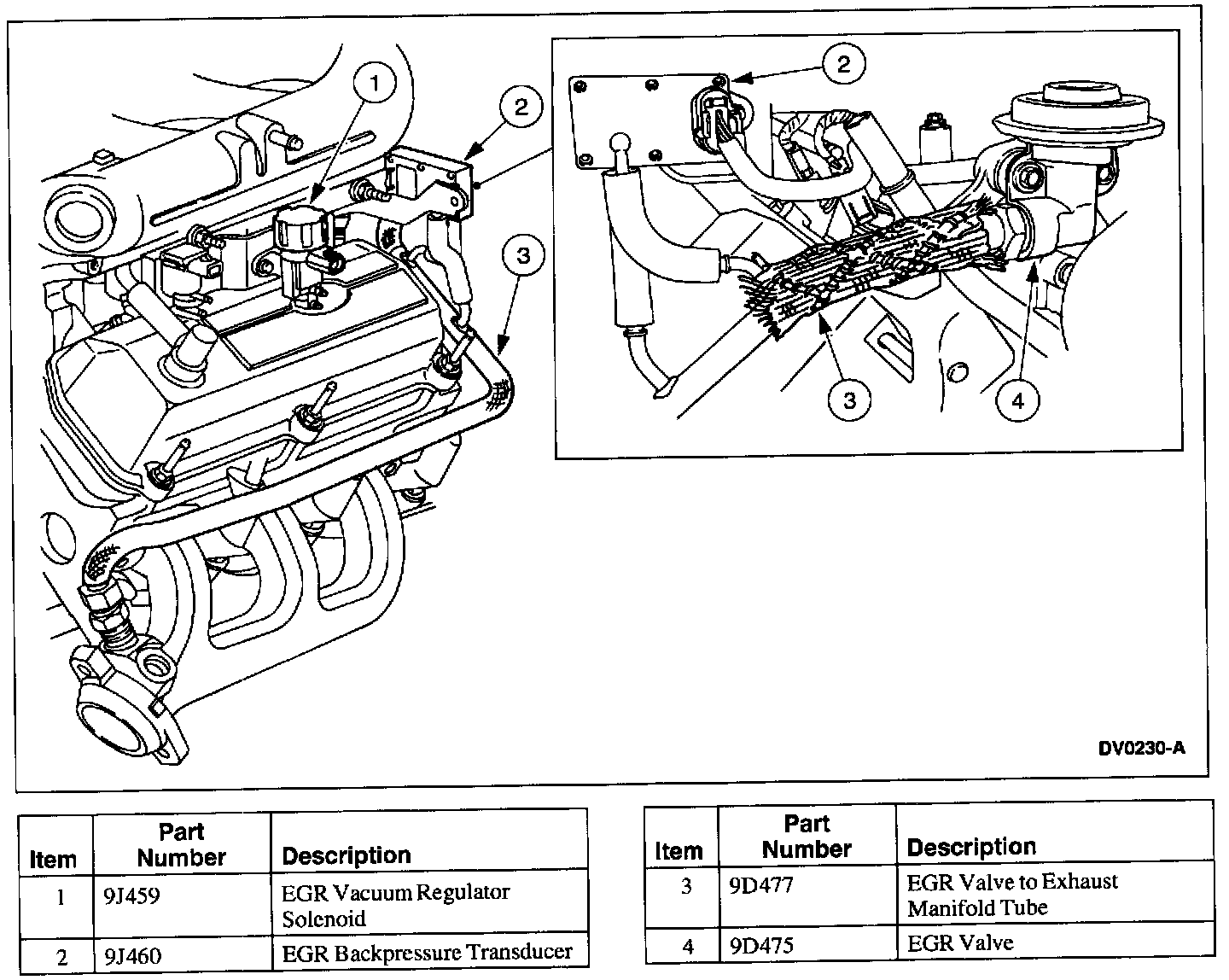

1. Remove the EGR backpressure transducer.
1 Remove the two EGR backpressure transducer tubes.
2 Disconnect the EGR backpressure transducer electrical connector.
3 Remove the two nuts.
4 Remove the EGR backpressure transducer.

INSTALLATION

To install, reverse the removal procedure.
