Throttle Position Sensor: Locations

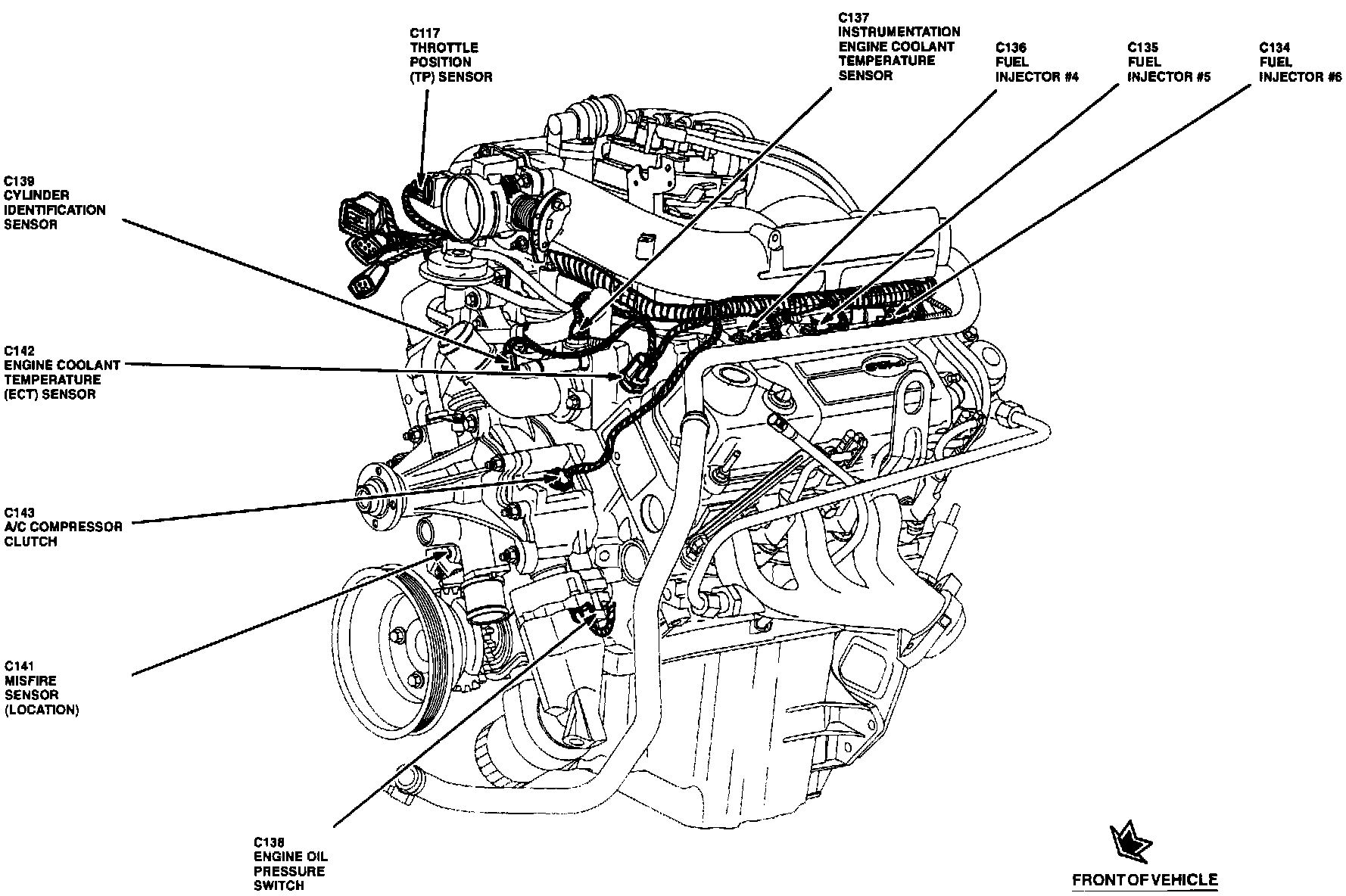

Engine View:
The Throttle Position Sensor is located on the top of engine, near air intake.
