Ford
>>
1997
>>
E 250 3/4 Ton Van V8-5.4L CNG VIN M
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Dashboard / Instrument Panel
Dashboard / Instrument Panel

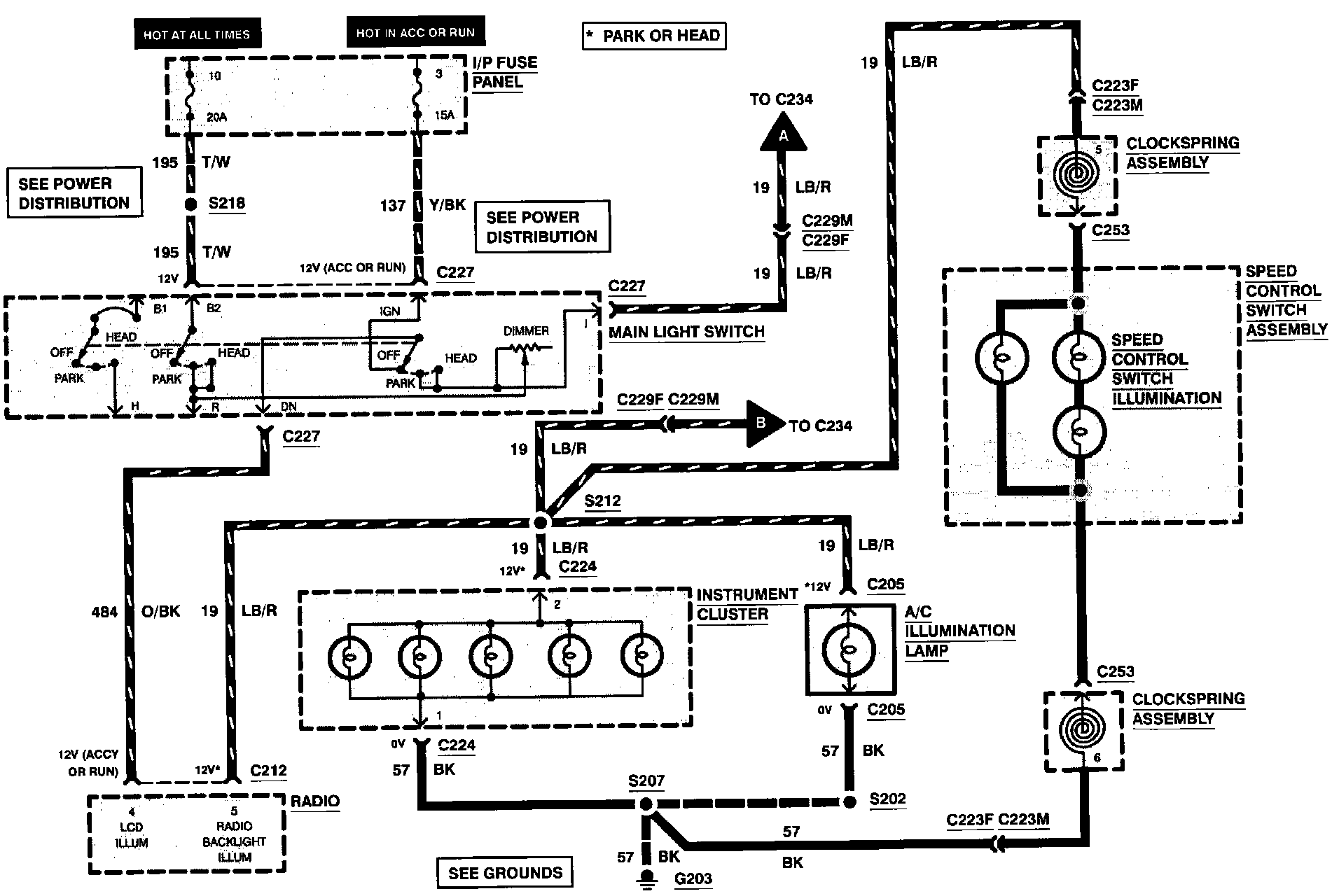

Instrument Illumination (Part 1 Of 2):
Instrument Illumination (Part 2 Of 2):
