Wiper Switch: Testing and Inspection

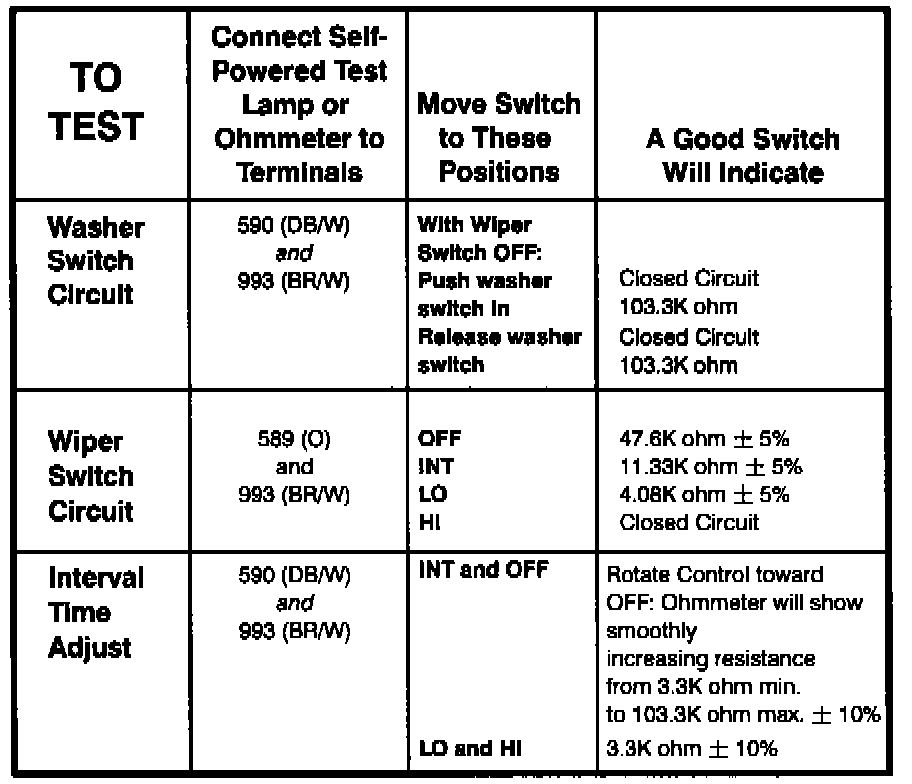

Multi-Function Switch - Component Testing Procedure (Wiper/Washer Portion):

Wiper/Washer Switch - Terminal Locations:

Wiper/Washer Switch - Schematic (Wiper/Washer Portion Of Multi-Function Switch:
