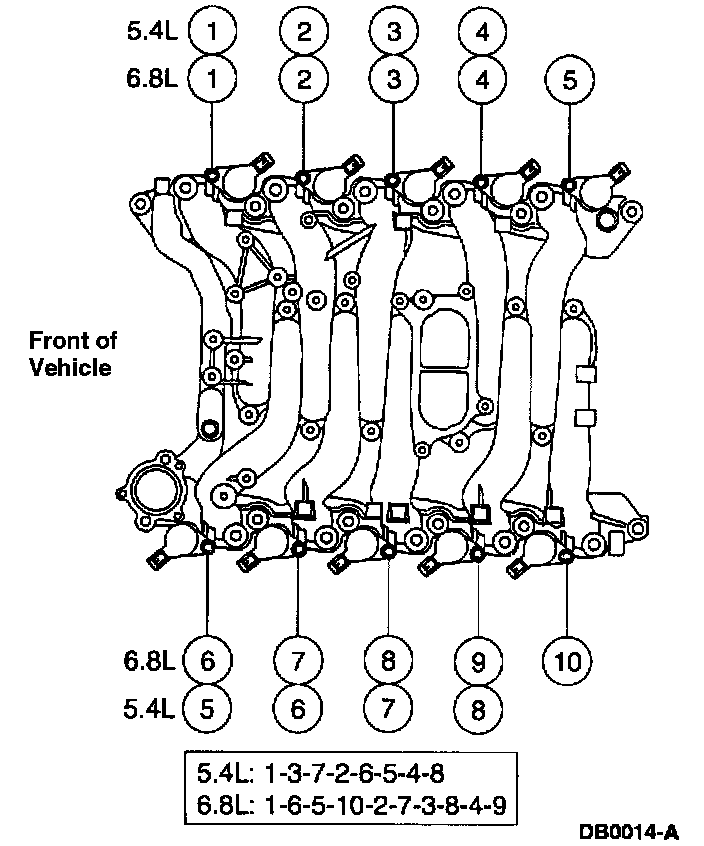

Spark Plug: Locations
1997 6.8l, 5.4l Similar:

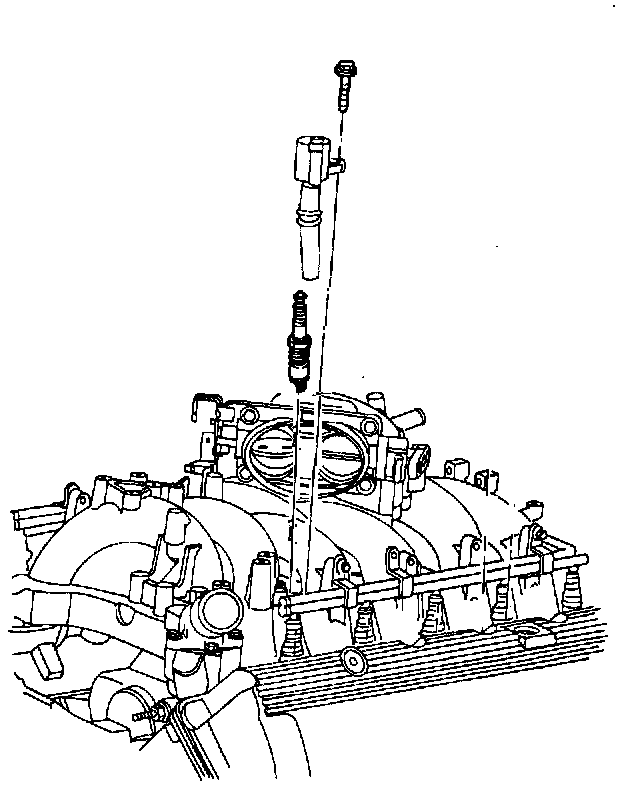

The Spark Plugs are located along the inboard sides of the cylinder heads, and outboard of the intake manifold.
