Spark Plug: Service and Repair

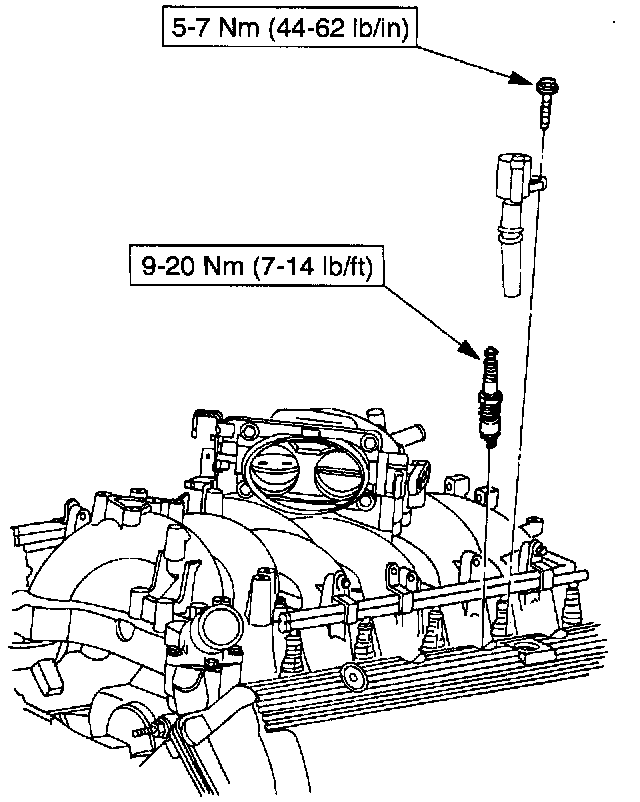

REMOVAL

1. Remove the engine cover.
2. Remove the air cleaner assembly.





3. Disconnect the Coil on Plug (COP) wiring at the coil.





4. Remove the COP retaining screw and coil.
5. Remove the spark plug.

INSTALLATION

To install, reverse the removal procedure.
