Front

DISASSEMBLY

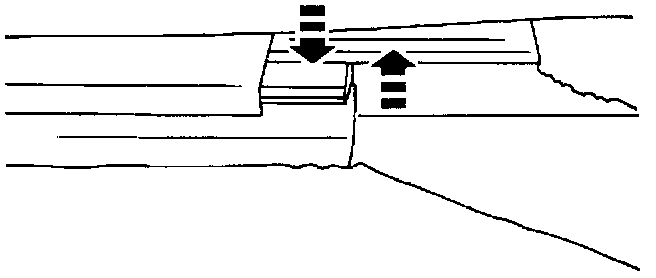

1. Unclip the J-retainer at the bottom.

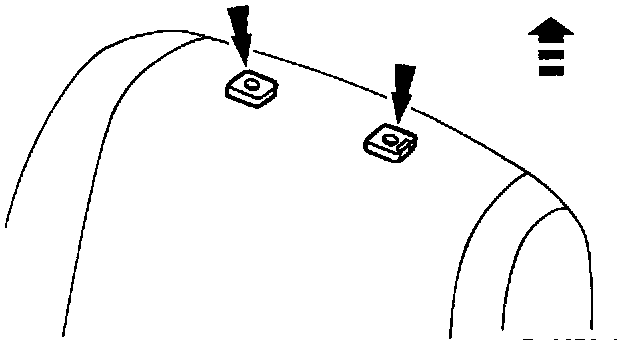

2. Pinch in the retaining tangs and remove the two front seat head rest guide rod sleeves.

NOTE: Do not attempt to remove the front seat head rest guide rod sleeves by prying them loose. The front seat head rest guide rod sleeves are released from inside the seat back cover.

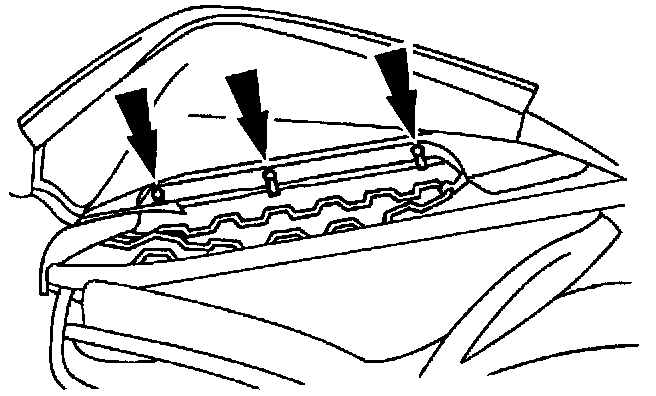

3. Remove the hog rings from the back cover and the frame.

ASSEMBLY
1. To assemble, reverse the disassembly procedure.
