Cruise Control Servo Cable: Adjustments
1.
Disconnect the speed control cable from the throttle control lever.
2.

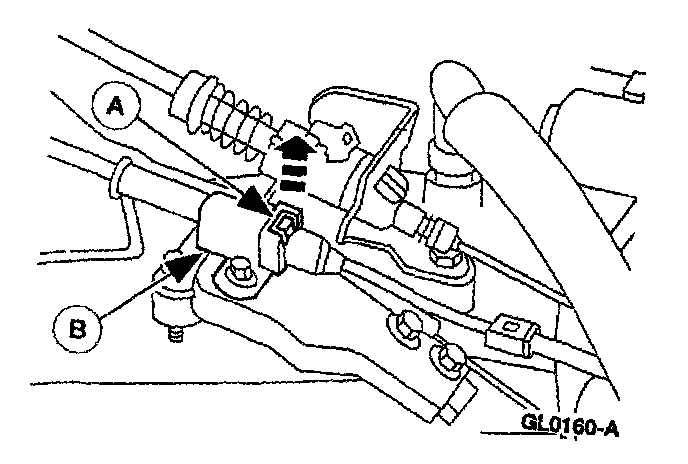

Remove the (A) speed control cable adjuster clip from the (B) cable adjuster.
3.

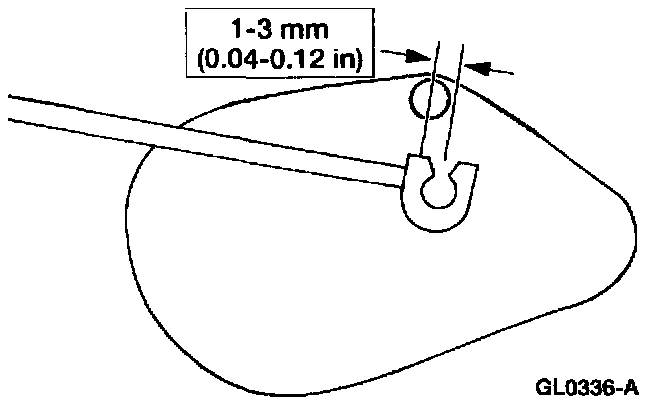

Adjust the speed control cable until freeplay is within specifications.
4.

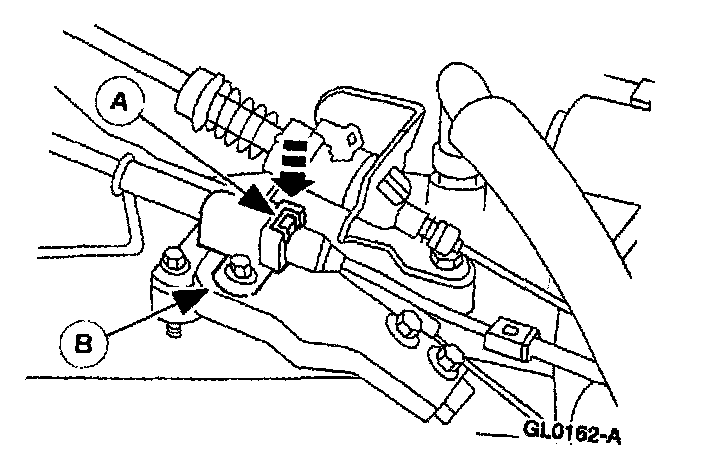

Install the (A) servo control cable adjuster clip into the (B) cable adjuster.
