Variable Induction System
Connector: C140 is at the Intake Manifold Runner Control Solenoid.
There is no connector view for C140 given. Refer to the wiring diagram.
There is an inline connector that is shared between this component, the Idle Air Control (IAC) Valve and the fuel injectors.

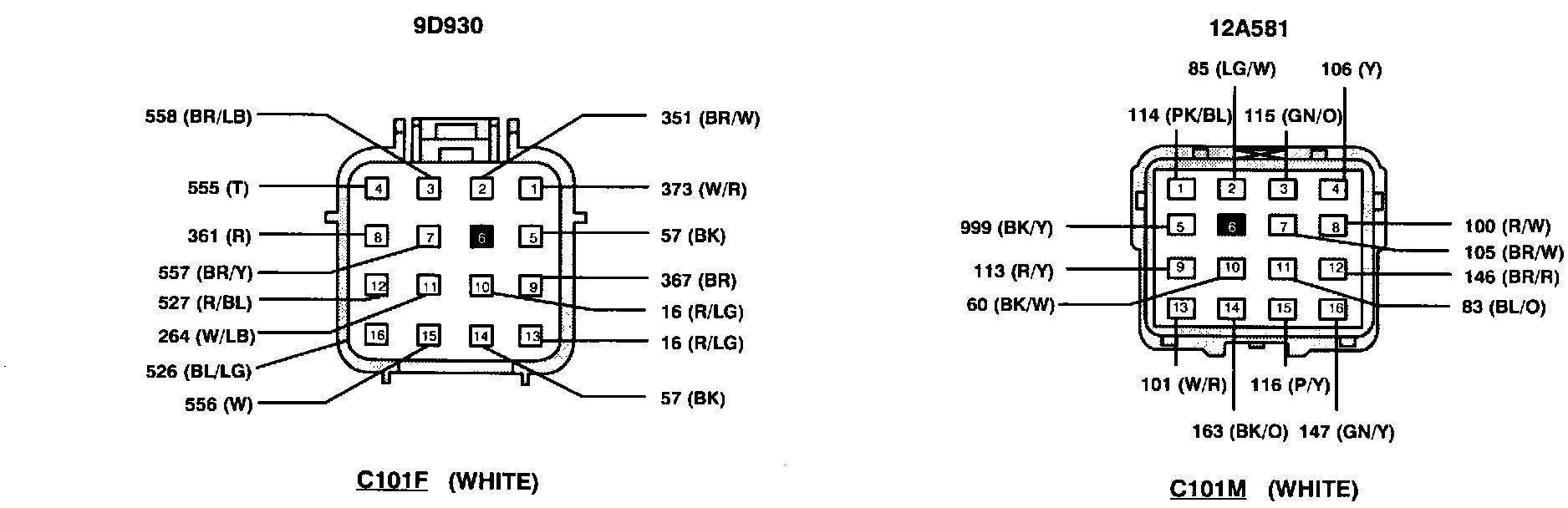

In-Line Connector Faces - C101:
Connector: C101, Color = 'White', Terminals= '16'
