Compressor Fitting HVAC: Service and Repair

REMOVAL
1. Discharge and recover the refrigerant from the system. Discharging and Recovery





2. Disconnect the A/C manifold and tube spring lock coupling.

CAUTION: Plug all ports to prevent contamination from dirt or moisture.





3. Disconnect the A/C manifold and tube spring lock coupling.

CAUTION: Plug all ports to prevent contamination from dirt or moisture.





4. Remove the A/C manifold and tube bracket bolt.





5. Remove the A/C manifold and tube bracket bolt and the A/C line clip.
6. Raise and support the vehicle.

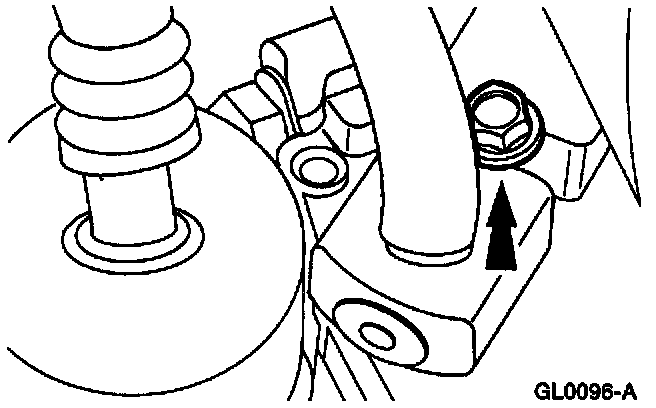

7. Remove the A/C manifold and tube bolt.

CAUTION: Plug all ports to prevent contamination from dirt or moisture.





8. Detach the A/C manifold and tube from the A/C manifold and tube support clip and remove the tube.

INSTALLATION
1. To install, reverse the removal procedure.
2. Leak test the A/C system.
