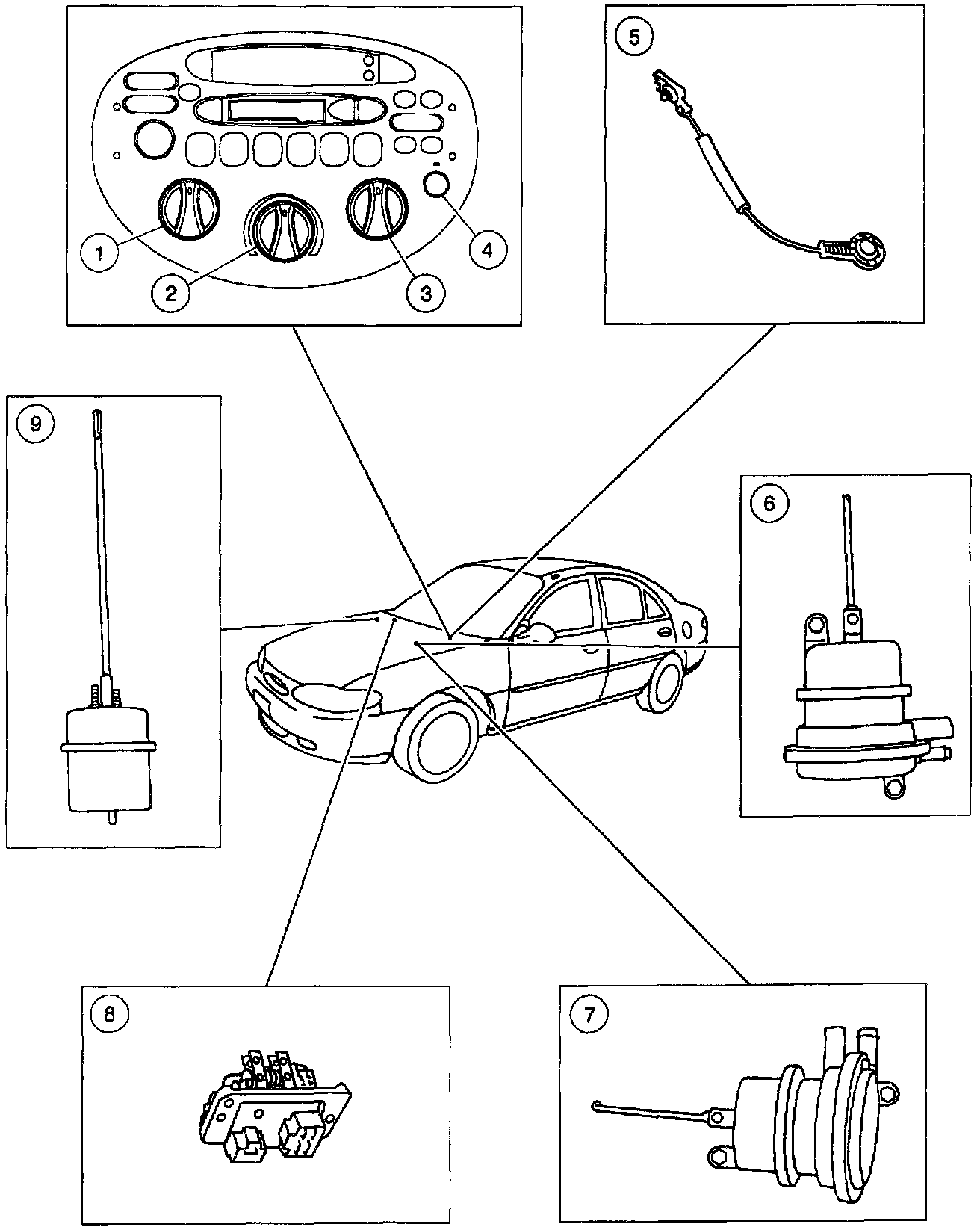

Control Components

Item Description
1 Heater Blower Motor Switch
2 Temperature Control Switch
3 Function Selector Switch
4 Heated Back Window Switch and Light
5 Heater Temperature Cable
6 Panel Airflow Door Vacuum Control Motor
7 Defrost/Floor Door Vacuum Control Motor
8 A/C Blower Motor Resistor
9 Air inlet Door Vacuum Control Motor

MANUAL CLIMATE CONTROL SYSTEM
The manual climate control system heats and/or cools the vehicle depending on the function selector position and the temperature selected. Function selector position determines heating or cooling and air distribution. The temperature control setting determines air temperature. The heated back window switch and light operate the heated back window.
