Heating System

The heating system is a blended air system, receiving outside air through the A/C air inlet duct, which is connected to the upper cowl. Air is directed through and/or around the heater core, mixed, and discharged through outlets in the heater to the floor, panel, and/or the defroster nozzles.

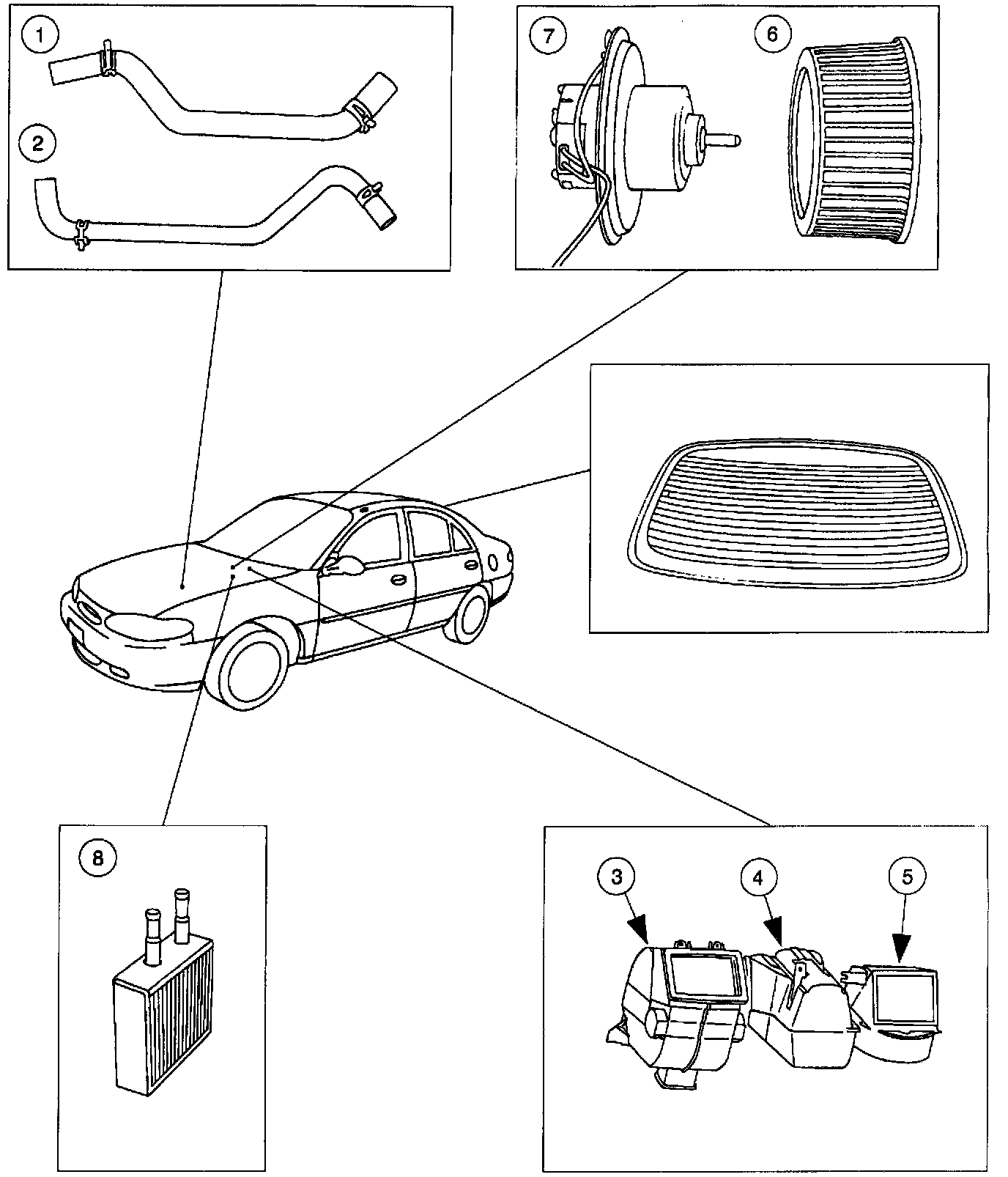

Item Description
1. Heater Outlet Hose
2. Heater Inlet Hose
3. A/C Blower Motor
4. A/C Blower Wheel
5. Heated Back Window
6. A/C Air Inlet Duct
7. A/C Evaporator Housing
8. Heater
9. Heater Core
