A/C Pressure Switch

REMOVAL

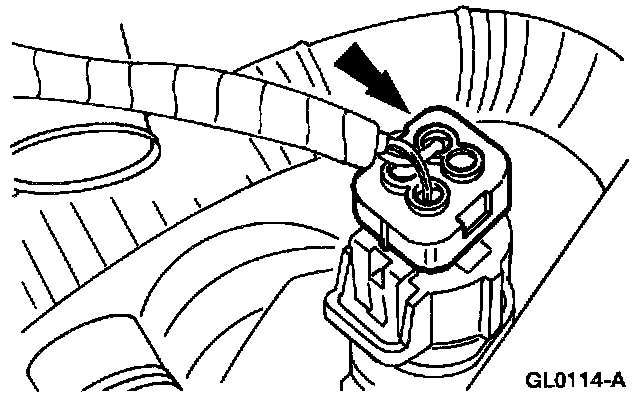

1. Disconnect the A/C cycling switch electrical connector.

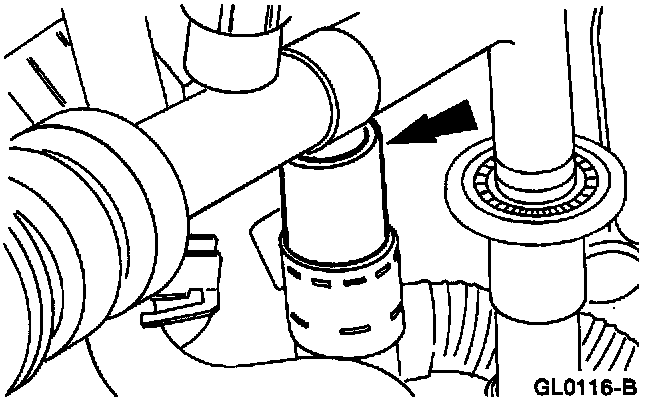

2. Remove the A/C cycling switch from the top of the suction accumulator/drier.

INSTALLATION
1. Lubricate the new O-ring seal.
^ Use Motorcraft YN-12b refrigerant oil or equivalent meeting Ford specification WSH-M1C231-B.

2. Install the A/C cycling switch onto the top of the suction accumulator/drier.

3. Reconnect the A/C cycling switch wiring connector.
4. Check for refrigerant leaks.
