Fuse: Service and Repair
REMOVAL 1.
Disconnect the battery ground cable.
2.

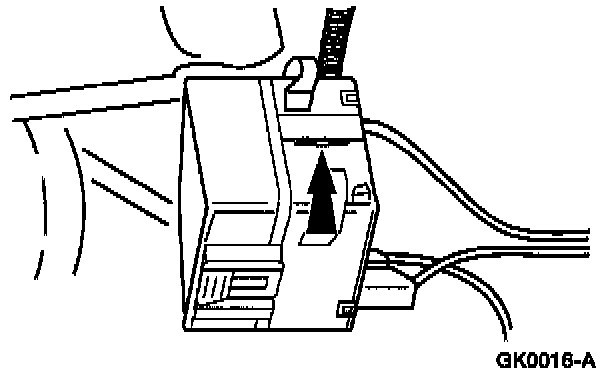

Remove the two main fuse junction panel nuts and lift the junction panel off the studs.
3.
Open the outside eyelet bolt cover.
4.
Loosen the outside eyelet bolt.
5.

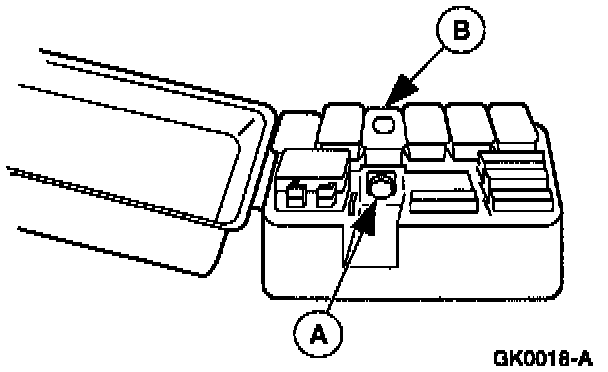

Open the main fuse junction panel cover, loosen the (A) inside eyelet bolt and remove the (B) main fuse.
INSTALLATION 1.
To install, reverse the removal procedure.
