Automatic Transaxle
REMOVAL 1.
Raise and support the vehicle.
2.
Disconnect the
vehicle speed sensor (VSS) electrical connector.
3.
Unclip the
heated oxygen sensor (H02S) wire clip from the
VSS bracket.
4.

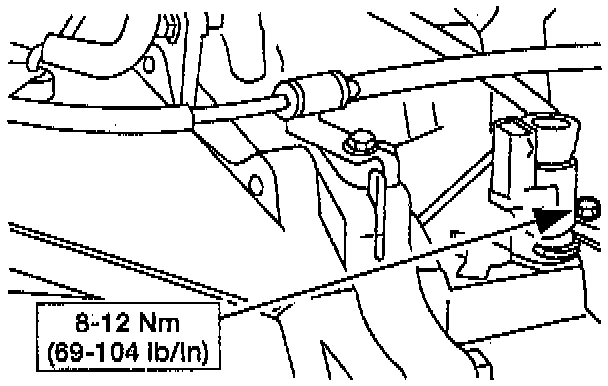

Remove the
VSS bolt.
5.
Gently pry out the
VSS.
INSTALLATION To install, reverse the removal procedure.
