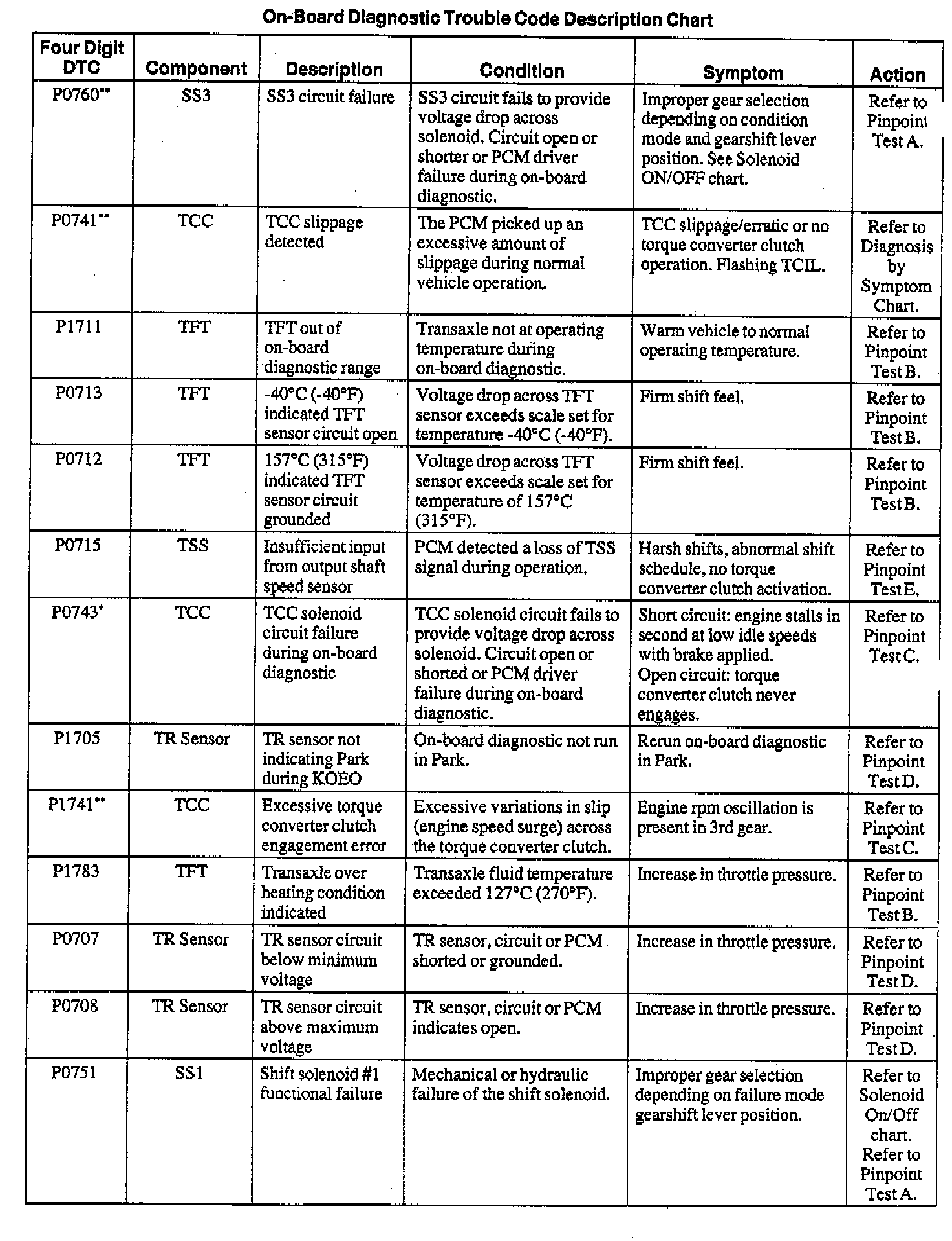

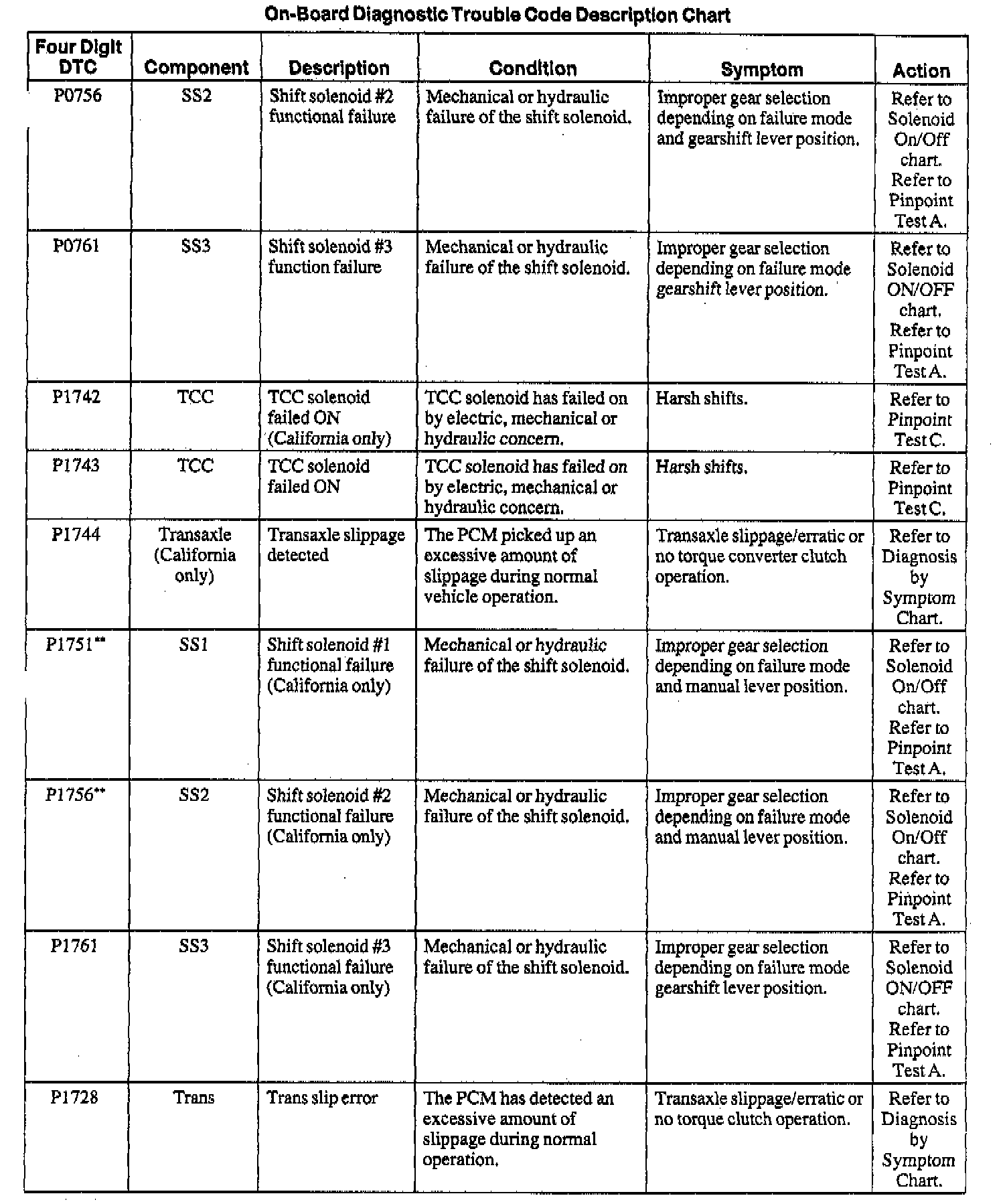

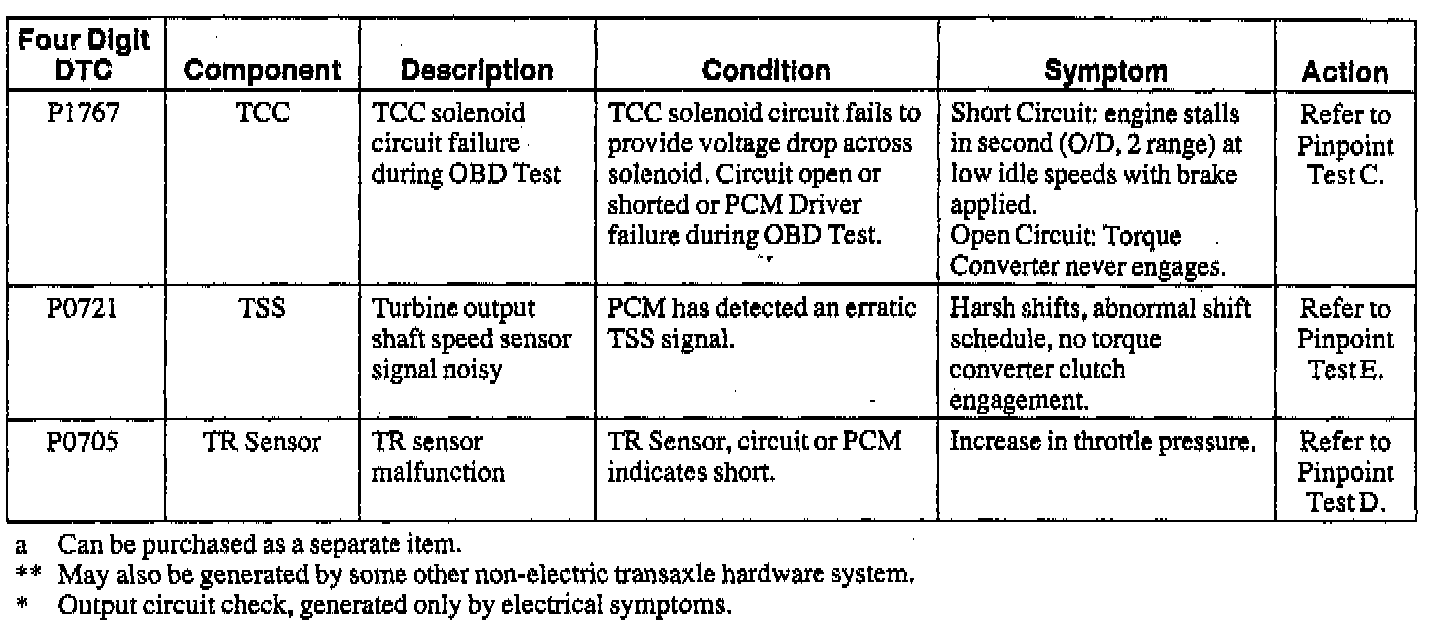

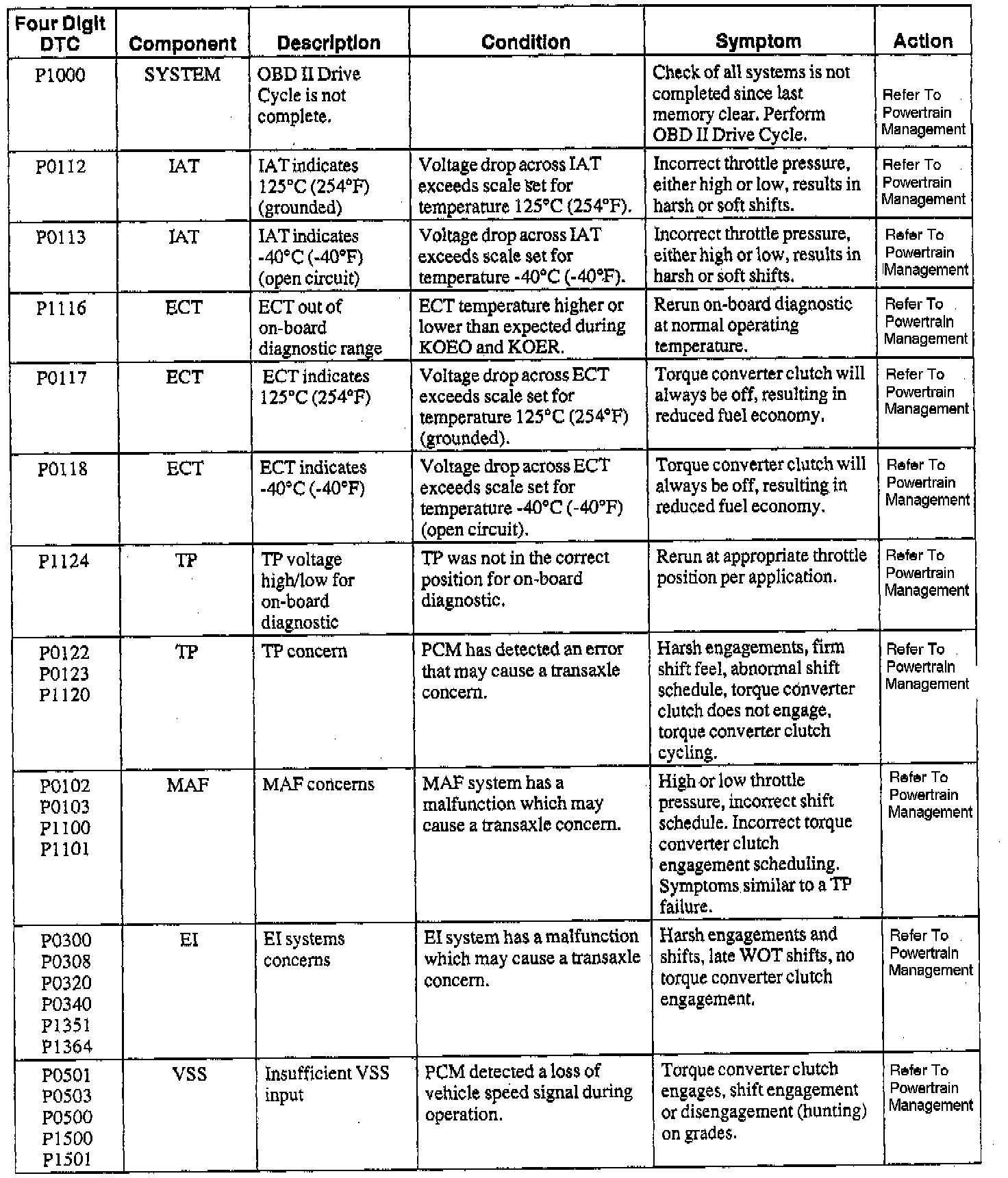

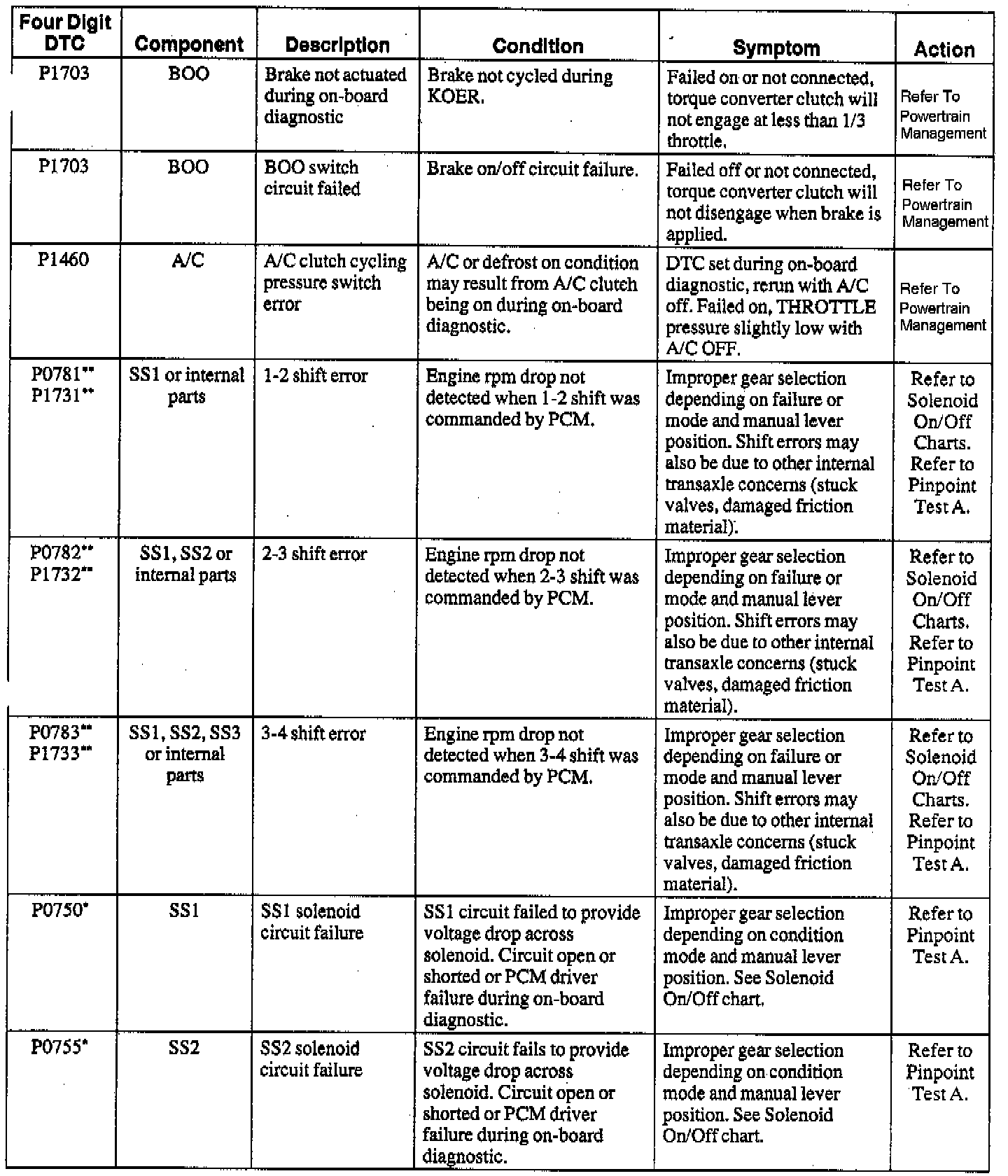

Diagnostic Trouble Code Tests and Associated Procedures

Part 1 Of 5:

Part 2 Of 5:

Part 3 Of 5:

Part 4 Of 5:

Part 5 Of 5:

NOTE: When a DTC action contains a reference to Powertrain Management, go to the DTC index under Powertrain Management/Computers and Control Systems/System Diagnosis and follow the pinpoint test instructions for that DTC. Testing and Inspection
