Flywheel
Clutch Surface
Runout:
0.180 mm (0.007 inch)
Finish:
4.0-1.3 micrometer (160-52 micro-inch)

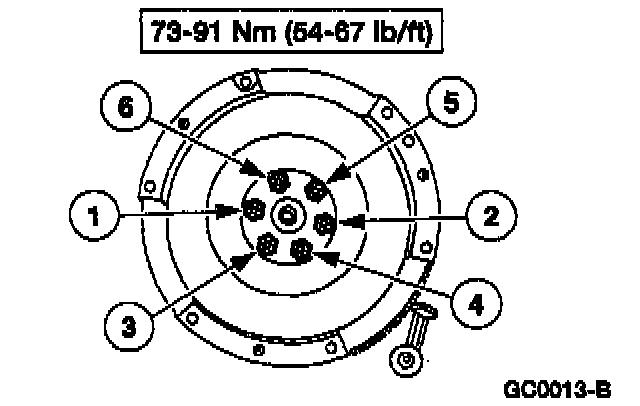

Retaining Bolts: 73.91 Nm (54-67 ft. lbs.)
