Window Glass: Service and Repair
REMOVAL 1.
Remove the door trim panel.
NOTE: Lower the door
window glass.
2.

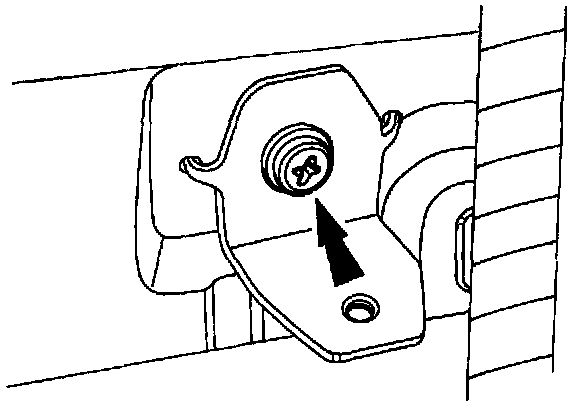

Remove the door armrest bracket screw and bracket.
3.
Remove the watershield.
4.

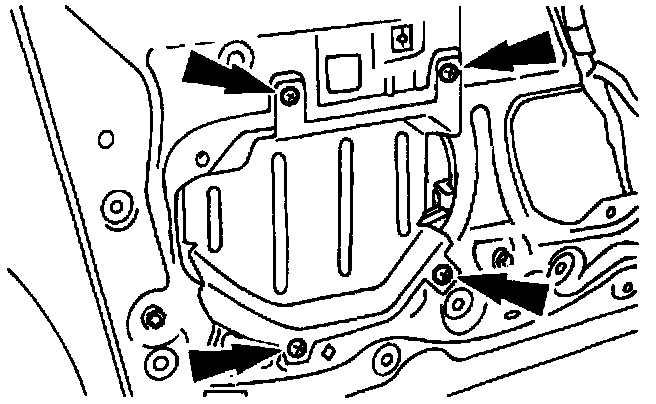

Remove the four bolts and the access panel (front door only).
5.

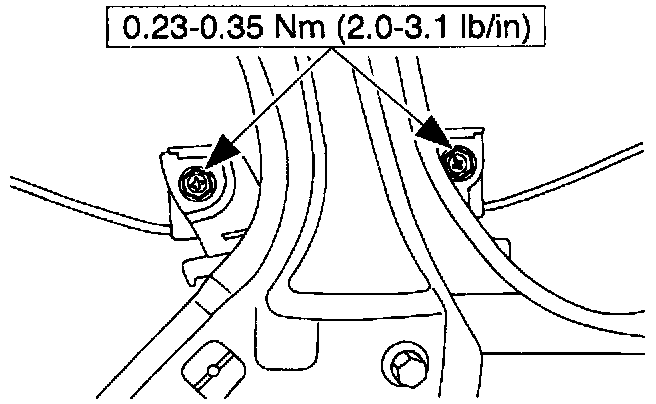

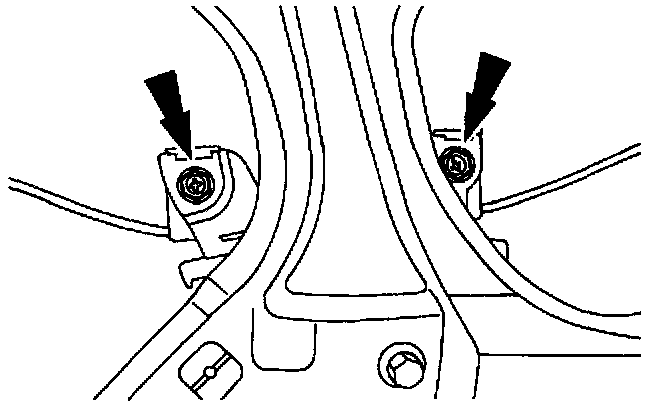

Remove the two bolts from the bottom of the door
window glass and remove the door window glass.
INSTALLATION 1.
To install, reverse the removal procedure.
