Front
REMOVAL 1.
Remove the front auxiliary
climate control head.
1.
Remove the screw.
2.
Carefully release the three clips and slide the roof console forward.
3.
Disconnect the electrical connectors.

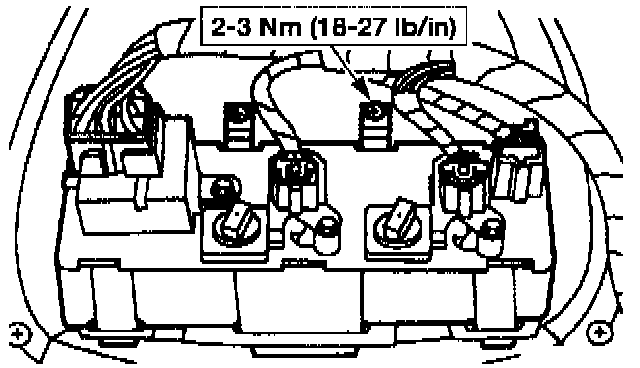

2.
Remove the auxiliary
climate control head from the bezel.
1.
Disconnect the electrical connectors.
2.
Remove the screws.
3.
Remove the control head.
INSTALLATION 1.
To install, reverse the removal procedure.
