Sliding Roof Panel
REMOVAL1. Remove the roof trim panel.

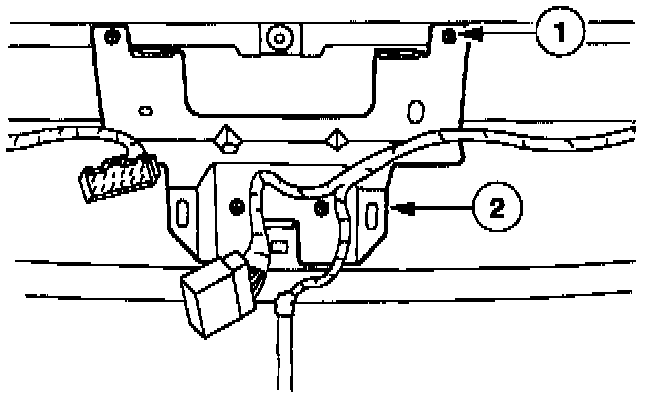

2. Remove the roof console bracket.
1. Remove the four screws.
2. Remove the roof console bracket.

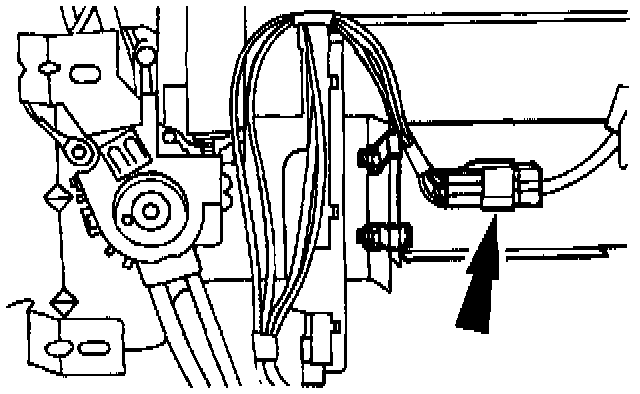

3. Disconnect the electrical connector and remove it from the bracket.
4. Remove the rear cargo lamp bracket.
^ Depress the four tabs.
5. Remove the sliding roof panel assembly.
1. Disconnect the four drain tubes.
2. Remove the bolts.
3. Remove the sliding roof panel assembly.
INSTALLATION
1. To install, reverse the removal procedure.
NOTE: Rear side brackets are to be reattached to the replacement roof sliding panel assembly.
