Front Differential
Front Differential

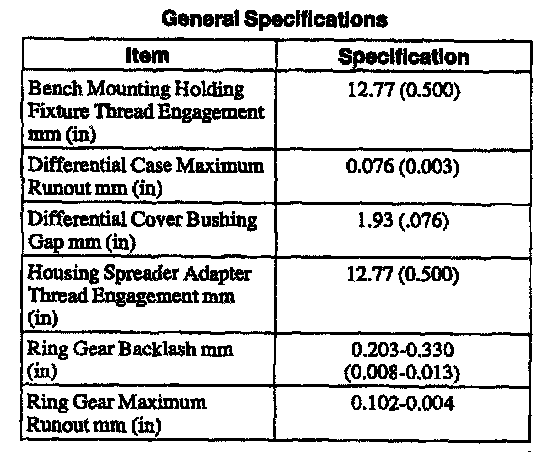

Ford 8.8 Inch, Differential Tolerances:

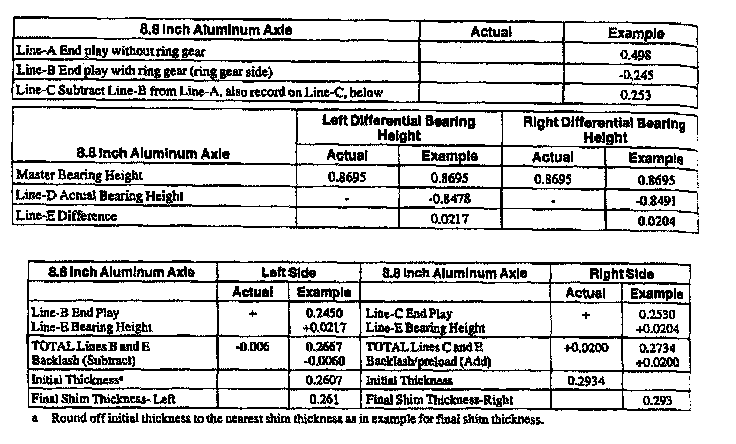

Ford 8.8 Inch, End Play-Bearing Thickness:

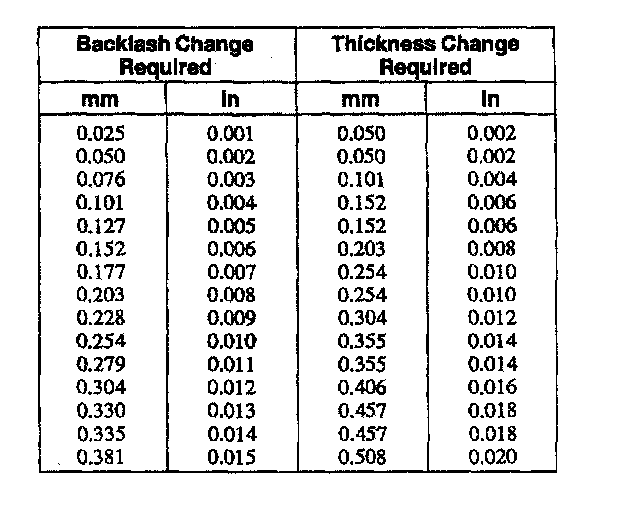

Ford 8.8 Inch, Backlash/Shim Thickness:

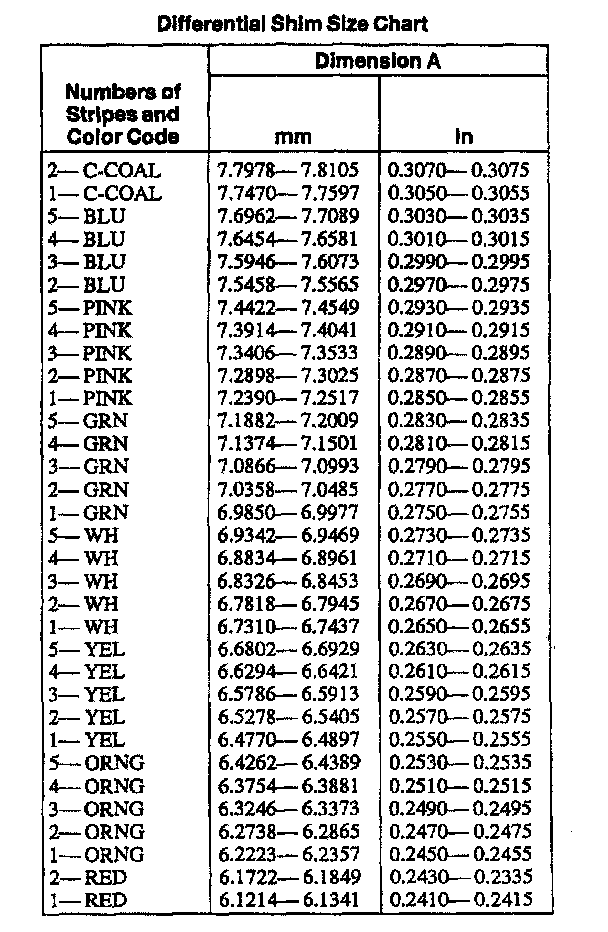

Ford 8.8 Inch, Differential Shim Chart:
