Throttle Position Sensor: Service and Repair

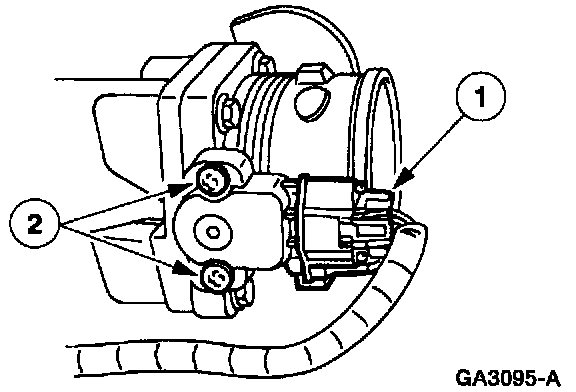

REMOVAL






1. Disconnect the Throttle Position (TP) sensor.
1 Disconnect the TP electrical connector.
2 Remove the screws and the TP sensor.

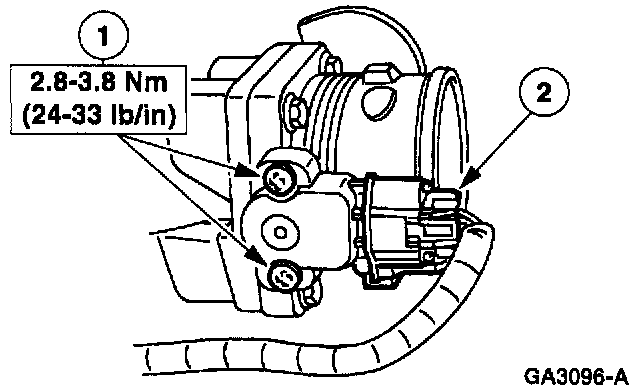

INSTALLATION






1. Connect the TP sensor.
1 Position the TP sensor and install the screws.
2 Connect the TP electrical connector.
