Front Bucket

DISASSEMBLY
1. Remove the front seat.
2. Place the front seat upside-down on a clean workbench.







3. Remove the safety belt buckle slide bar.
1. Remove the bolt.
2. Remove the nut.
3. Remove the safety belt buckle slide bar.

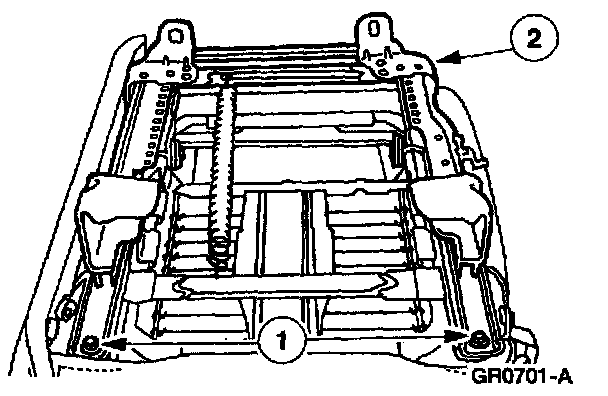

4. Remove the front seat track to seat base bolts.







5. Remove the front seat track.
1. Remove the rear seat track to seat base bolts.
2. Remove the front seat track.







6. Remove the front seat cushion side shield cover screw.







7. Disconnect the pushpin.







8. Remove the front seat cushion side cover.
^ Remove the front seat cushion side cover from the seat latch.







9. Remove the front seat back latch to seat base bolts.







10. Remove the front seat inboard pivot bolt and separate the base from the back.

ASSEMBLY
1. Assemble in the reverse order.
