Cruise Control Servo: Service and Repair

REMOVAL






1. Disconnect the speed control servo electrical connector.






2. Remove the speed control actuator cable from the speed control servo.
^ Press the speed control actuator locking clip inward and twist the actuator counter-clockwise to remove.

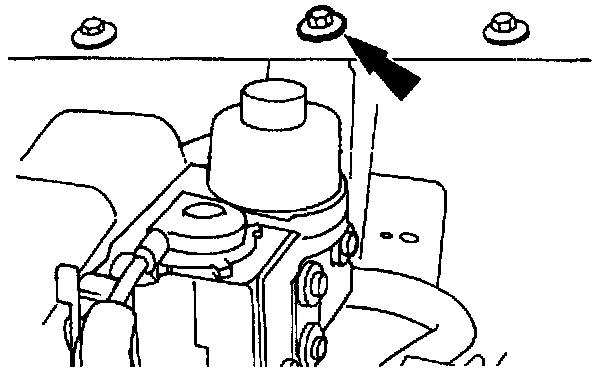

3. Remove the speed control servo bracket bolt and remove the servo.

INSTALLATION






1. To install, reverse the removal procedure.
