Conical Style

REMOVAL






1. Open the (A) Air Cleaner (ACL) clamp and set the (B) engine air cleaner cover aside.

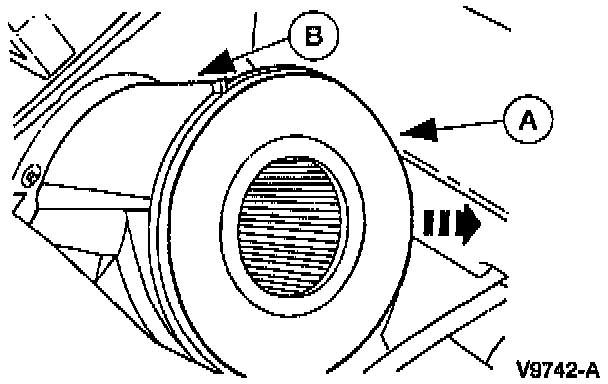

2. Remove the (A) ACL element from the (B) engine air cleaner intake.






3. Lift the open end of the (A) engine ACL intake until it is free of the (B) engine ACL support insulator intake. Pull the engine ACL intake away from the inner fender.

INSTALLATION
1. To install, reverse the removal procedure.
