Alarm Module: Service and Repair

REMOVAL





1. Pry to remove the front door scuff plate.





2. Pull the cowl side trim panel rearward and remove.





NOTE: If C256 is disconnected first, an inadvertent IGNTAM alarm event (AL__EVT) will be stored and the alarm will sound. The alarm must be disarmed by the remote unlock button or a key in the door lock cylinder to UNLOCK. To avoid this condition, disconnect (1) C257 before (2) C256 and reconnect (2) C256 before (1) C257.

3. Disconnect the two Remote Anti-theft Personality (RAP) module electrical connectors.
1. Disconnect C257.
2. Disconnect C256.

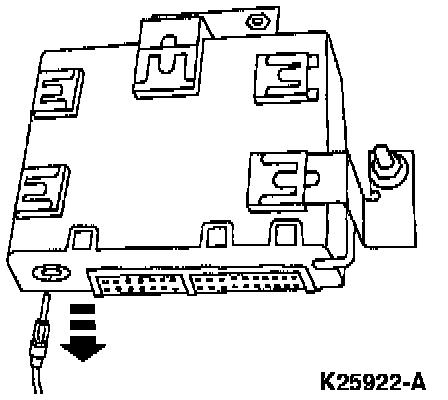

4. Disconnect the antenna connector.





5. Remove the RAP module nuts and the RAP module.

INSTALLATION

NOTE: To avoid inadvertent alarm activation, reconnect C256 first.





1. To install, reverse the removal procedure.
