Rear 60/40 Bench Seat

DISASSEMBLY







1. Remove the 60% rear seat cushion.
1. Remove the six bolts.
2. Remove the 60% rear seat cushion.







2. Remove the 40% rear seat cushion.
1. Remove the four bolts.
2. Remove the 40% rear seat cushion.







3. Remove the LH and RH rear seat riser supports.
1. Remove the six bolts (three on each support).
2. Remove the LH and RH rear seat riser supports.
4. Remove the two bolts and remove the center rear seat riser support.







5. Remove the 40% rear seat cushion panel.
1. Remove the 11 screws.
2. Remove the 40% rear seat cushion panel.







6. Unfasten the four 40% rear seat cushion cover retainers.
7. Remove the three seat cushion hog rings and remove the 40% rear seat cushion cover.
8. Separate the 40% rear seat cushion pad from the rear seat cushion frame.







9. Remove the two 40% rear seat hinges.
1. Remove the four bolts (two on each hinge).
2. Remove the two rear seat hinges.







10. Remove the 40% rear seat cushion latch and buckle assembly.
1. Remove the two bolts.
2. Remove the 40% rear seat cushion latch and buckle assembly.







11. Remove the 60% rear seat cushion panel.
1. Remove the 14 screws.
2. Remove the 60% rear seat cushion panel.







12. Remove the 60% rear seat cushion latch and buckle assembly.
1. Remove the two bolts.
2. Remove the 60% rear seat cushion latch and buckle assembly.







13. Remove the seven (A) 60% rear seat cushion cover retainers, nine hog rings, and the (B) cover.
14. Separate the 60% rear seat cushion pad from the rear seat cushion frame.







15. Remove the three 60% rear seat hinges.
1. Remove the six bolts.
2. Remove the three hinges.







16. Remove the two rear seat back latch strikers.
1. Remove the four nuts.
2. Remove the two rear seat back latch strikers.

ASSEMBLY







1. Install the two rear seat back latch strikers.
1. Position the two rear seat back latch strikers.
2. Install the four nuts.







2. Install the three 60% rear seat hinges.
1. Position the three hinges.
2. Install the six bolts.
3. Insert the 60% rear seat cushion pad into the rear seat cushion frame.







4. Position the (B) cover and install the seven (A) 60% rear seat cushion cover retainers and the nine hog rings.







5. Install the 60% rear seat cushion latch and buckle assembly.
1. Position the latch and buckle assembly.
2. Install the two bolts.







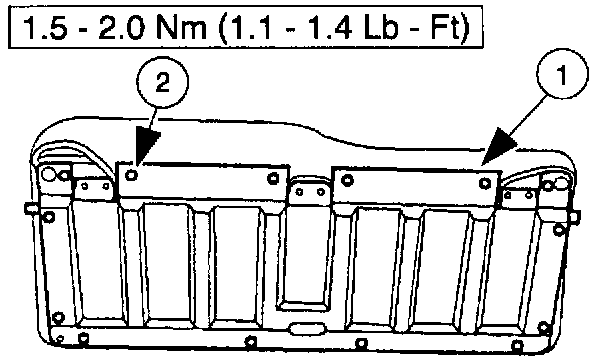

6. Install the 60% rear seat cushion panel.
1. Position the panel.
2. Install the 14 screws.







7. Install the 40% rear seat cushion latch and buckle assembly.
1. Position the latch and buckle assembly.
2. Install the two bolts.







8. Install the two 40% rear seat hinges.
1. Position the two hinges.
2. Install the four bolts (two on each hinge).
9. Install the 40% rear seat cushion pad into the rear seat cushion frame.
10. Position the 40% rear seat cushion cover and install the three hog rings.







11. Install the four 40% rear seat cushion cover retainers.







12. Install the 40% rear seat cushion panel.
1. Position the panel.
2. Install the eleven screws.







13. Install the LH and RH rear seat riser supports.
1. Position the riser supports.
2. Install the six bolts (three on each support).
14. Position the center rear seat riser Support and install the two bolts.







15. Install the 40% rear seat cushion.
1. Position the 40% rear seat cushion.
2. Install the four bolts.
^ Check for proper operation.







16. Install the 60% rear seat cushion.
1. Position the 60% rear seat cushion.
2. Install the six bolts.
^ Check for proper operation.
