Cruise Control Servo: Service and Repair

REMOVAL

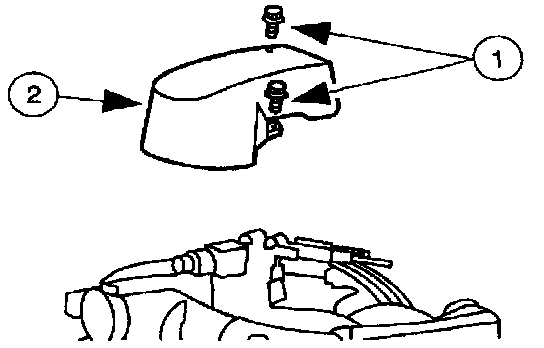

1. Remove the accelerator control splash shield.
1 Remove two accelerator control splash shield bolts.
2 Remove the accelerator control splash shield.

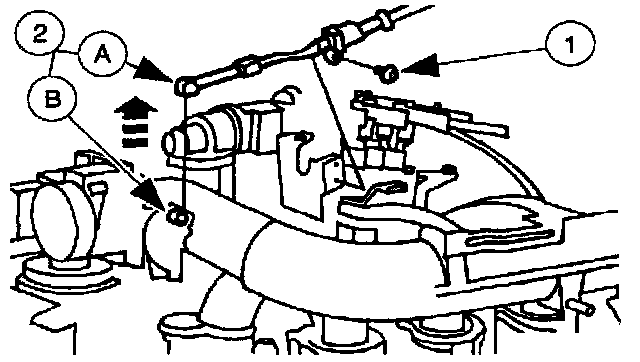

2. Disconnect the speed control actuator cable.
1 Remove the speed control actuator cable to accelerator cable bracket bolt.
2 Disconnect the (A) speed control actuator cable from the (B) throttle body cam and position aside.





3. Push in the locking arm on speed control actuator cable cap. Rotate the cap counterclockwise and remove the speed control actuator cable cap from the speed control servo.





4. Disconnect the speed control core wire end from the speed control servo pulley.
1 Depress the spring retainer.
2 Slide core wire end out of the speed control servo pulley.





5. Disconnect the speed control servo electrical connector.

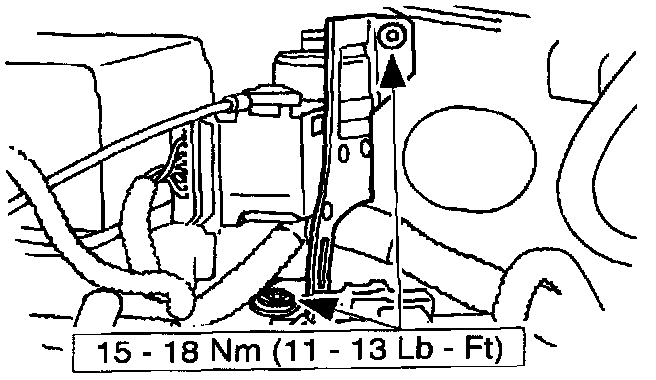

6. Remove the speed control servo and bracket.
1 Remove the two bolts.
2 Remove the speed control servo and bracket.





7. Remove the speed control servo bracket.
1 Remove the three screws.
2 Remove the speed control servo bracket.

INSTALLATION

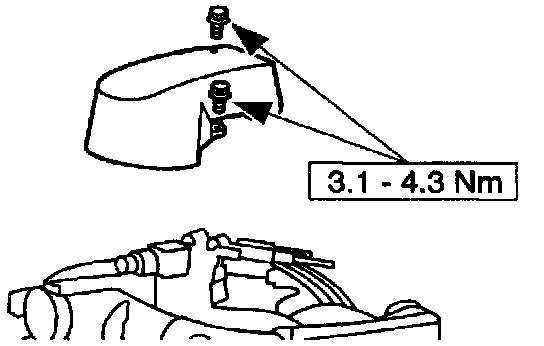

1. To install, reverse the removal procedure.
