Home >> Ford >> 1997 >> F 150 2WD Pickup V6-4.2L VIN 2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transmission Position Sensor/Switch, A/T >> Transmission Range Sensor >> Except Vehicles Built Before 6/24/96

Except Vehicles Built Before 6/24/96

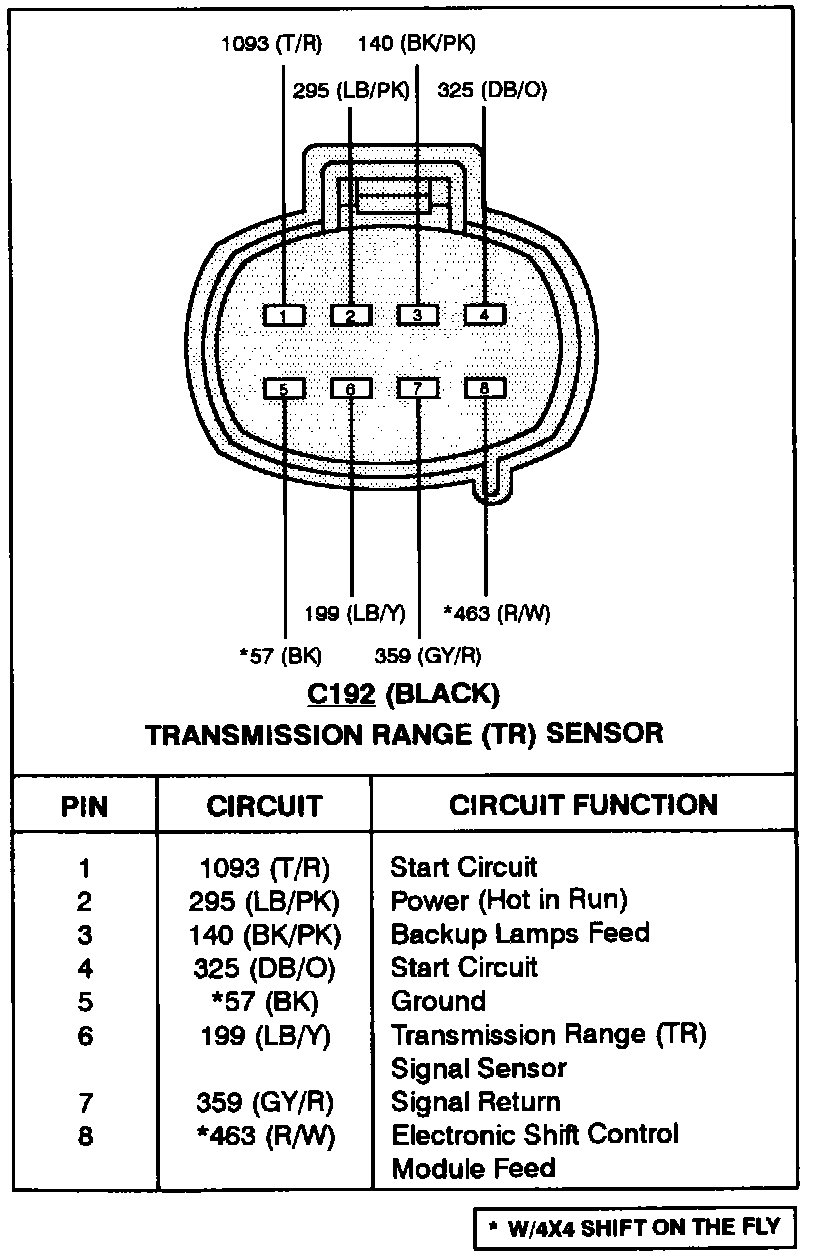

Transmission Range Sensor:
