Variable Induction System
Connector: C118 is at the Intake Manifold Tuning Valve
Solenoid.
There is no connector view for C118 given. Refer to the wiring diagram.
There is an inline connector shared between this
solenoid, the EGR Vacuum Regulator (EVR) solenoid and the fuel injectors.

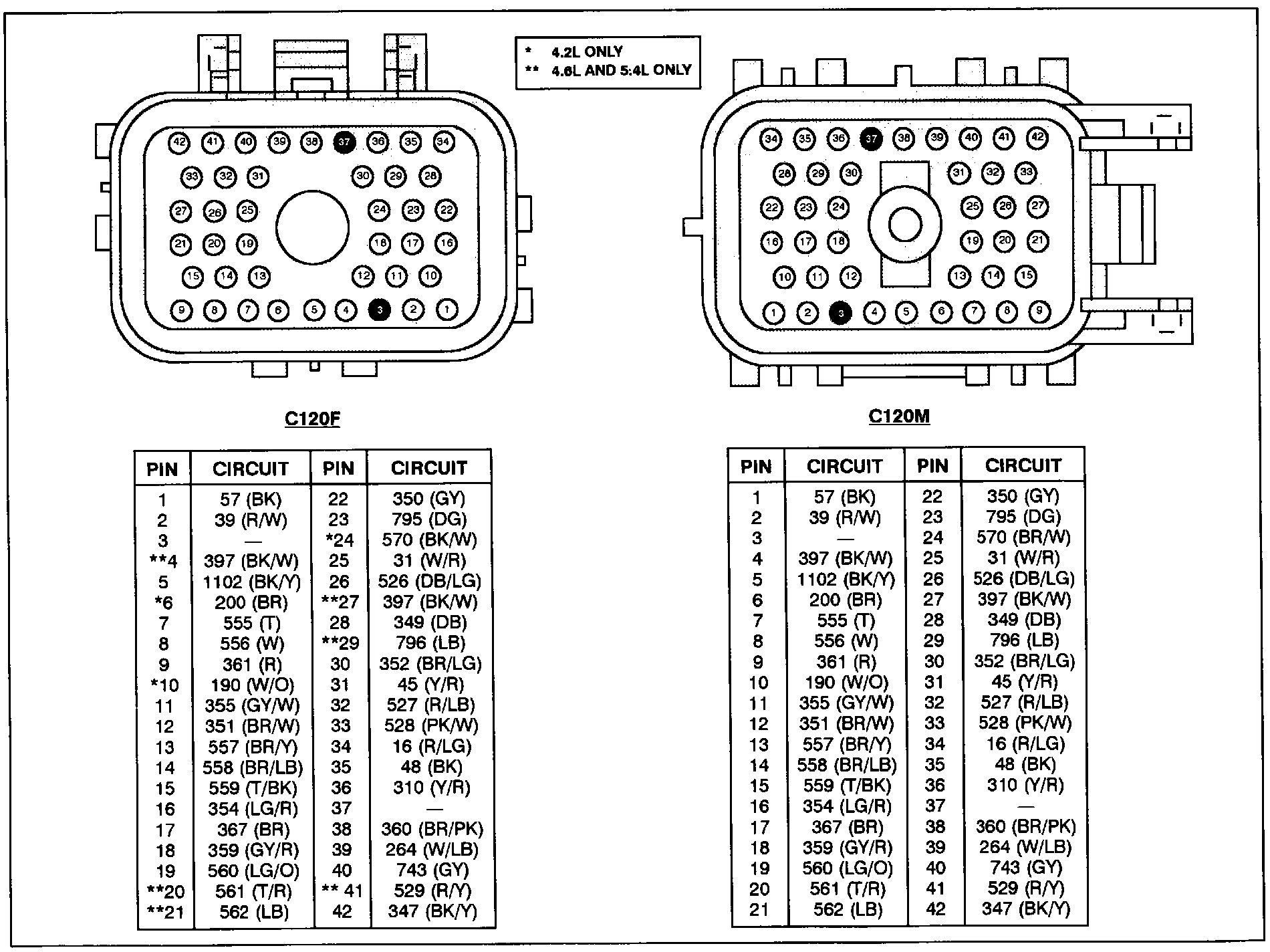

In-Line Connector Faces - C120:
Connector: C120, Color = 'Black', Terminal= '42'
