System Diagram

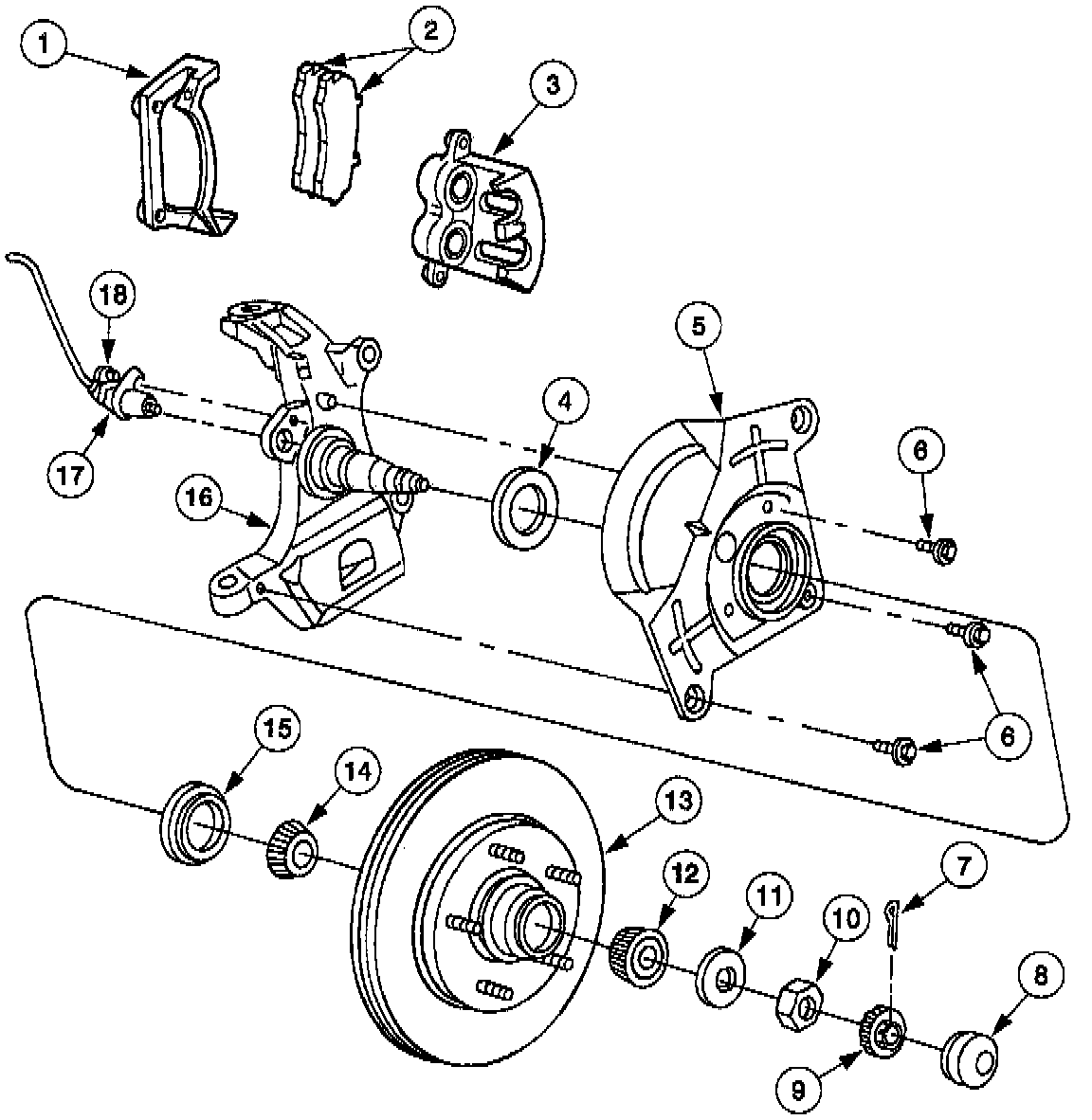

Front Disc Brake Assembly:



Front Disc Brake Assembly Components:

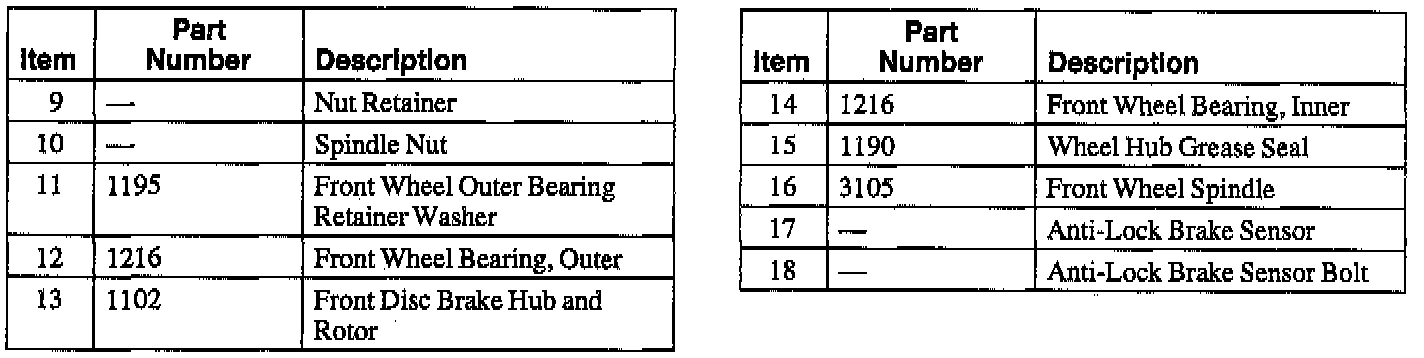

Front Disc Brake Assembly Components:
