Function Selector Switch

REMOVAL
1. Remove the climate control head.

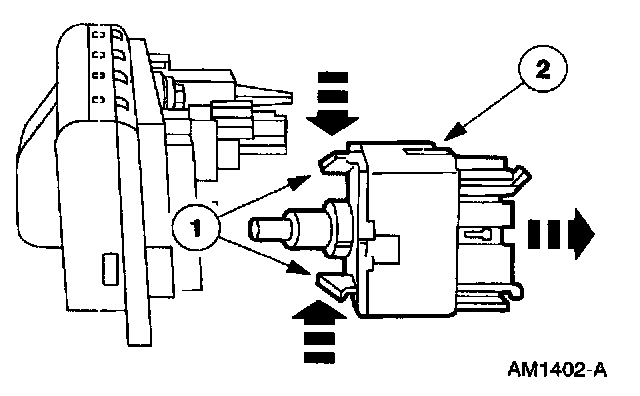

2. Remove the function selector.
1. Depress the two snap tabs.
2. Remove the function selector.

NOTE: The knob will drop off as the function selector is removed.

INSTALLATION
1. To install, reverse the removal procedure.
