Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1997
>>
F 150 2WD Pickup V6-4.2L VIN 2
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Backup Lamp
>>
Diagrams
>>
Electrical Diagrams
>>
Vehicles Built After 6/24/96
Vehicles Built After 6/24/96

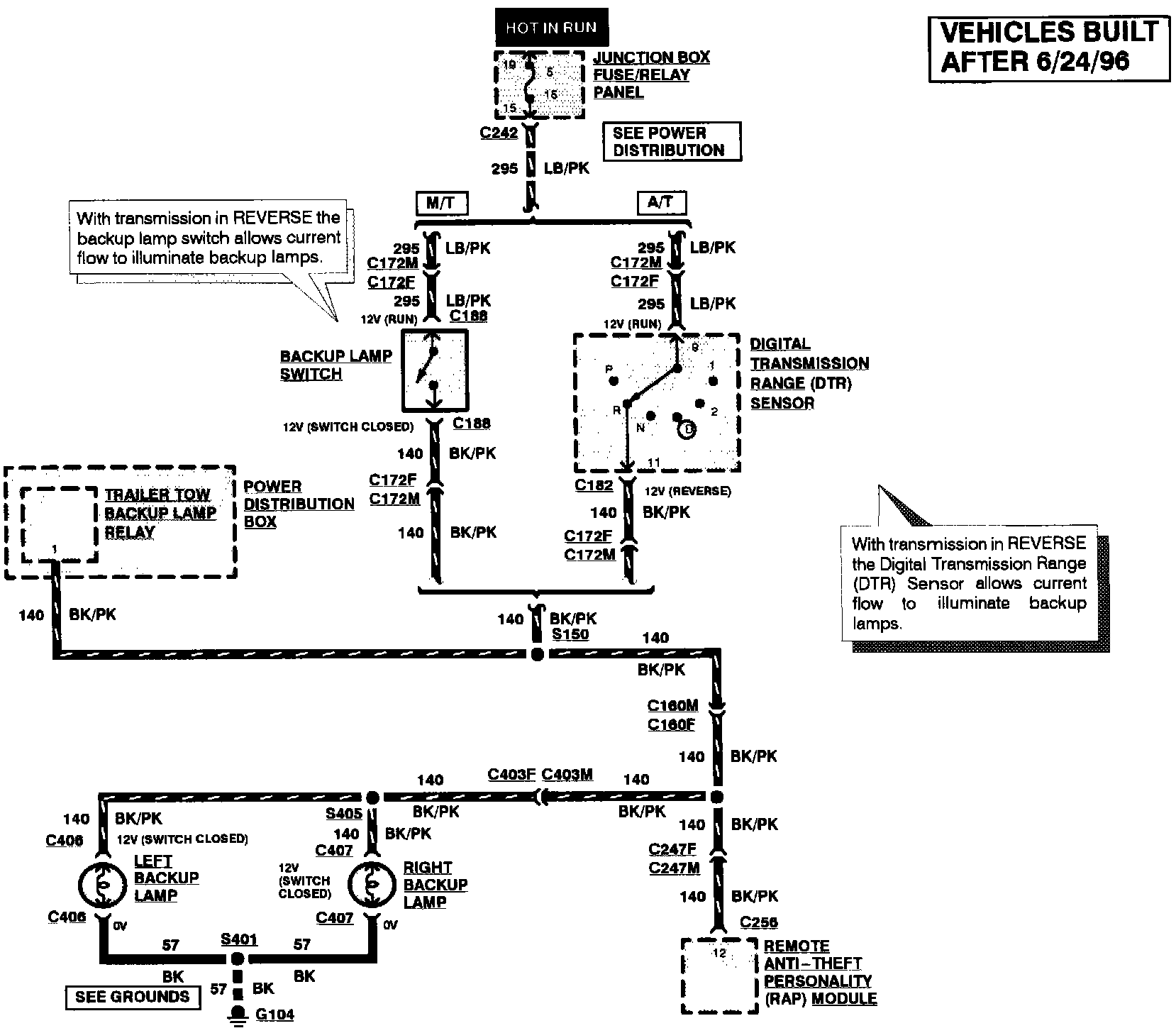

Backup Lamps (Vehicles Built After 6-24-96):
