F 150 2WD Pickup V6-4.2L VIN 2
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Locations
>>
Lock Relays
Lock Relays

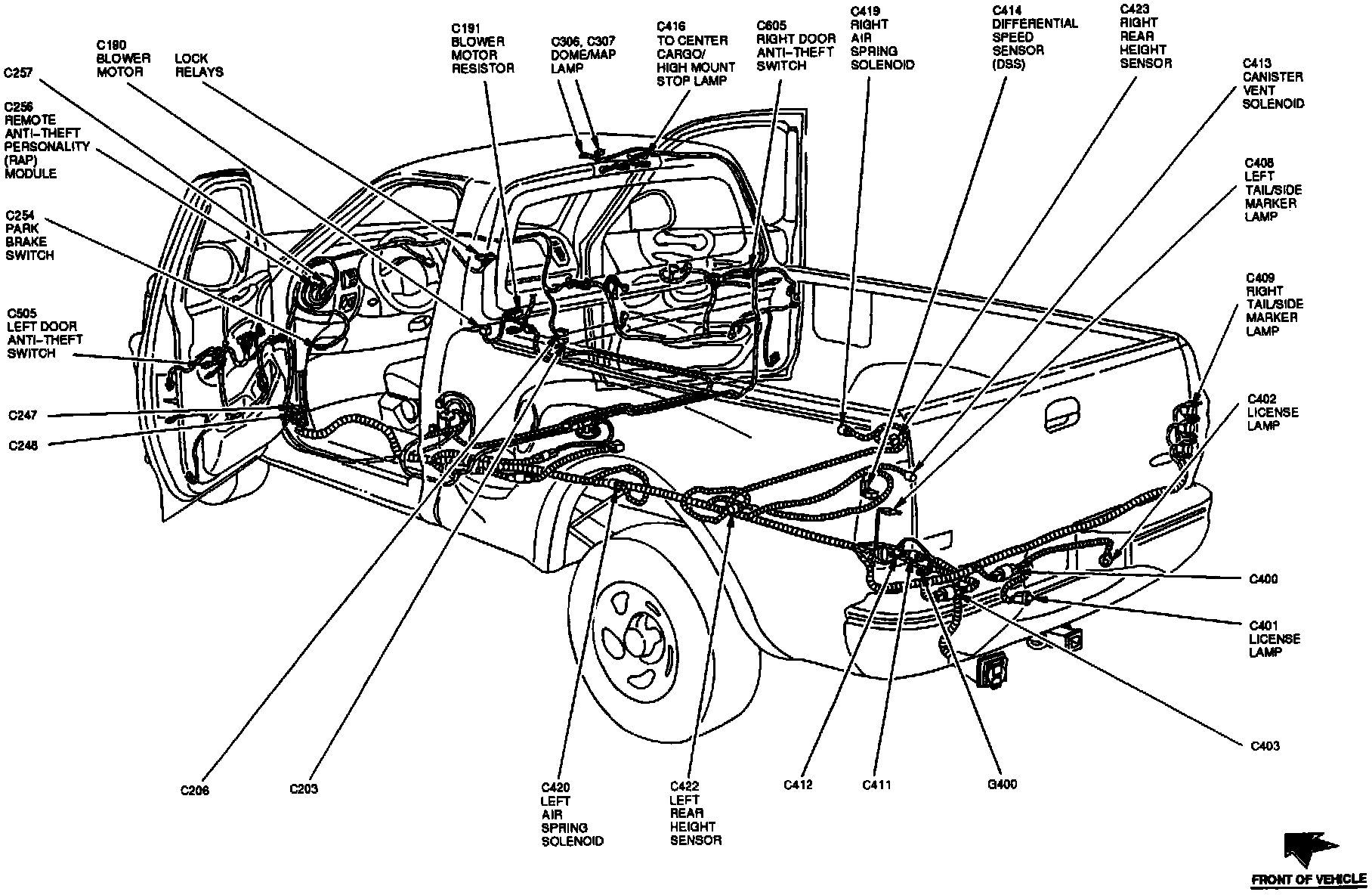

Body View:
Lock Relays:
The Lock Relays are located behind right side of the instrument panel.
