Operation CHARM: Car repair manuals for everyone.
Home >> Ford >> 1997 >> F 150 2WD Pickup V6-4.2L VIN 2 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinpoint Tests >> H: No Module/Network Communication on ISO 9141 Link Ckt

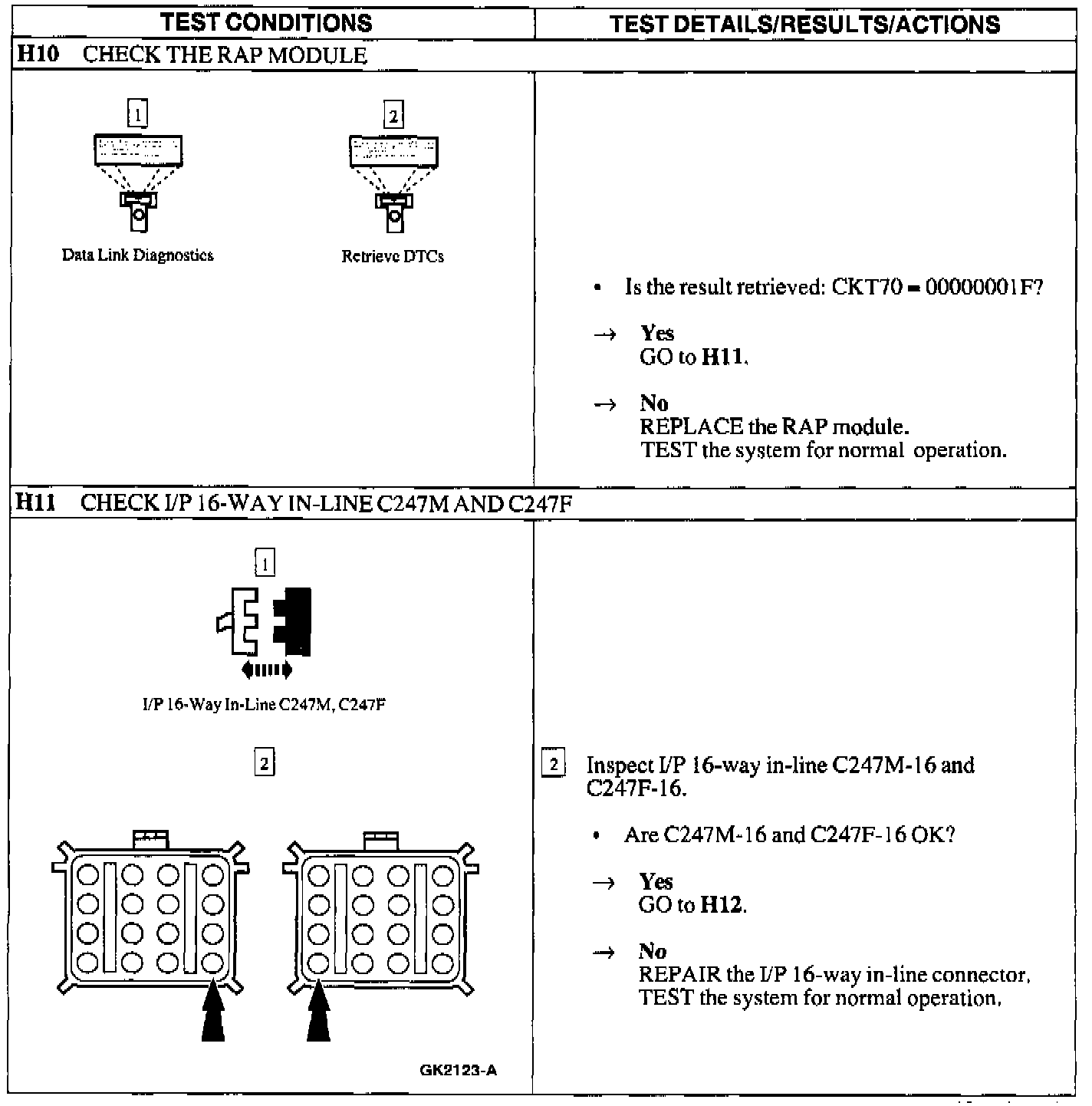

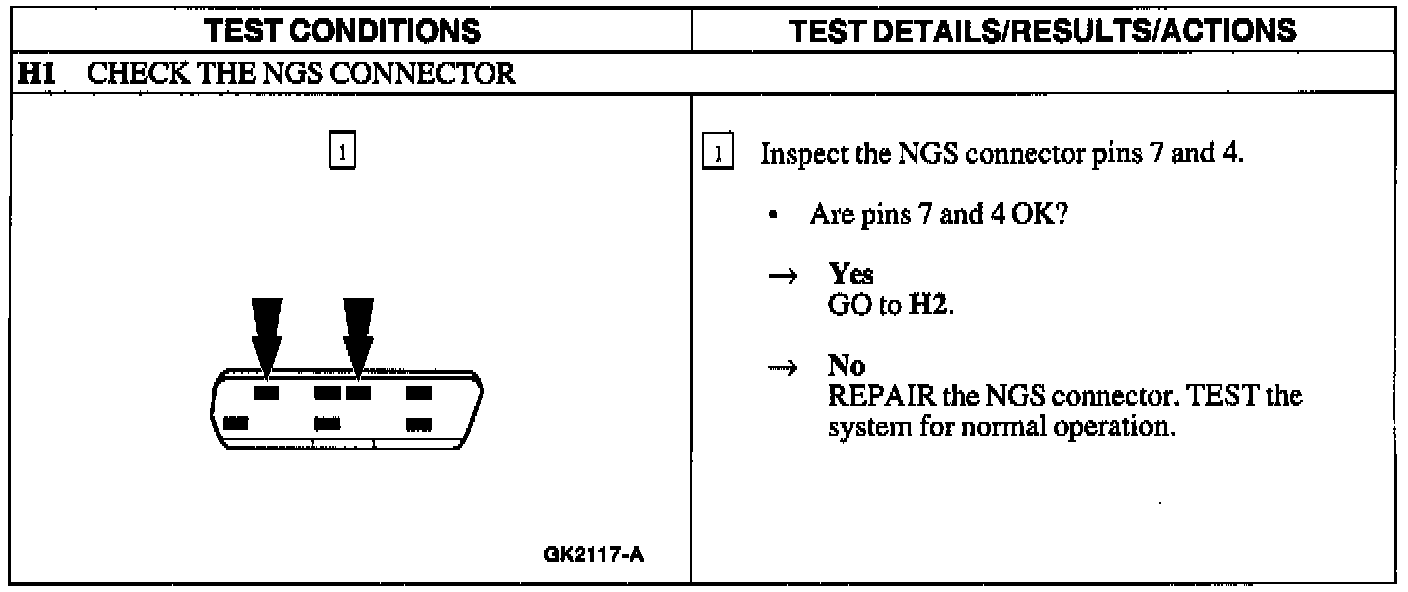

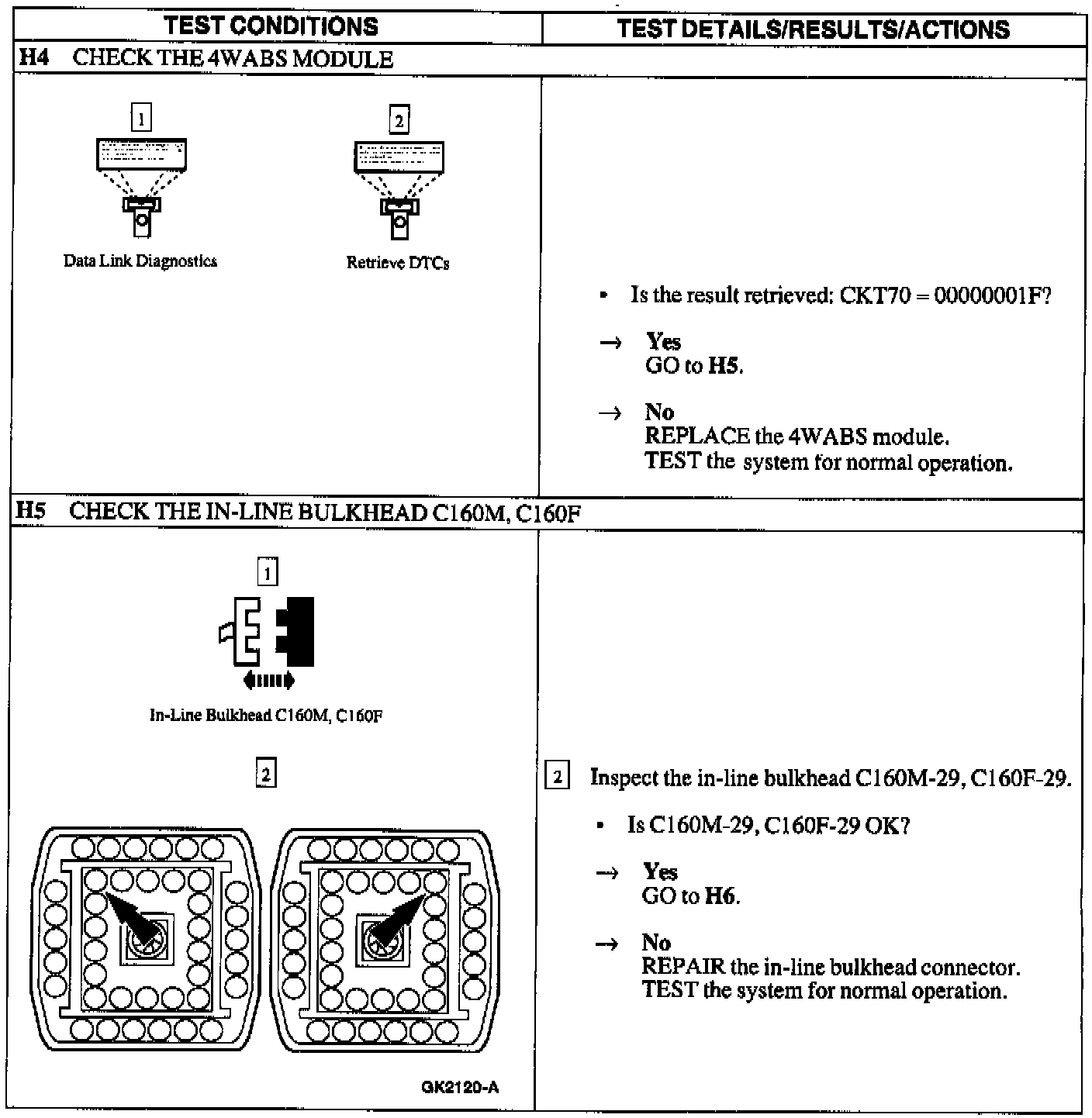

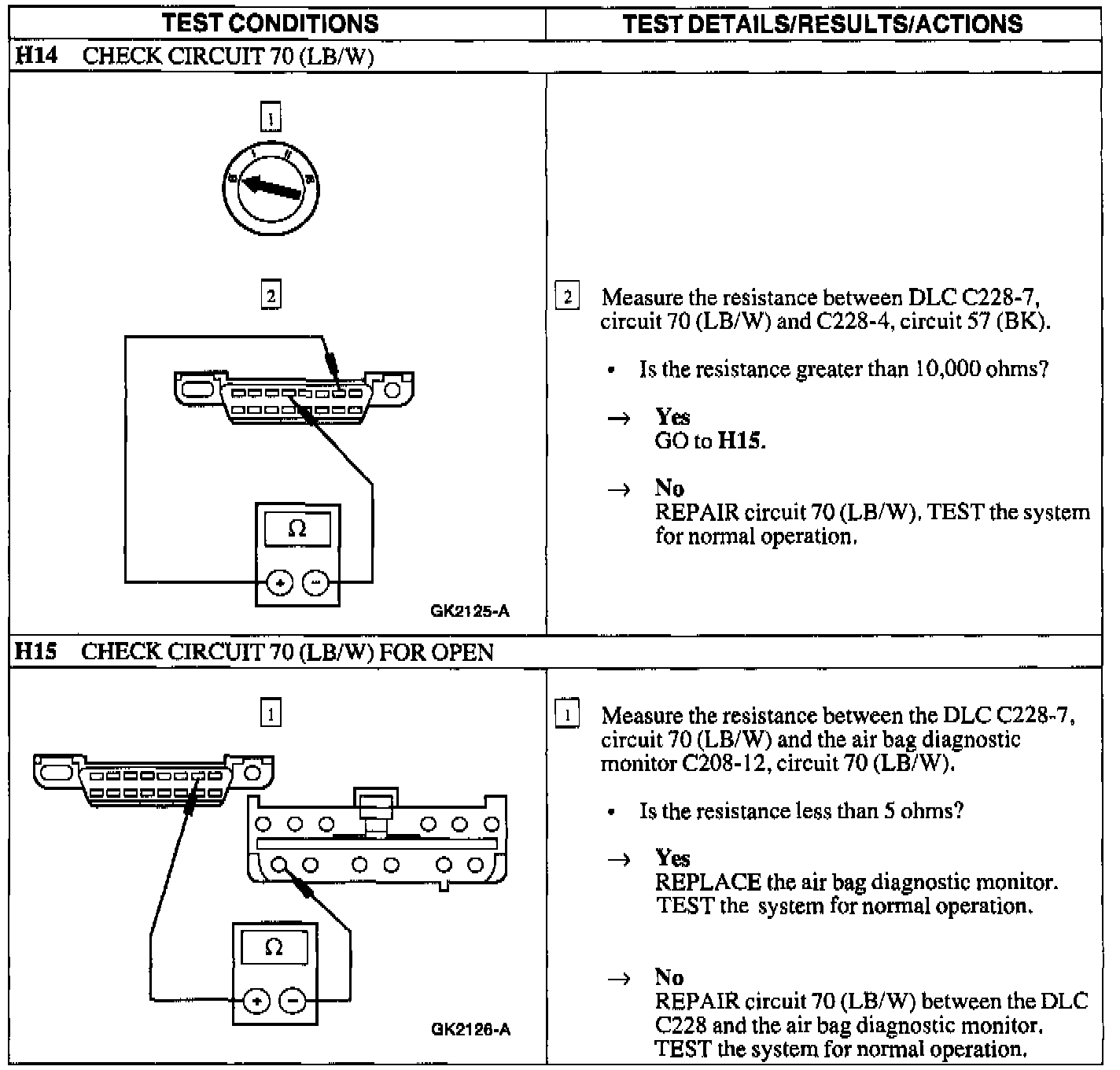

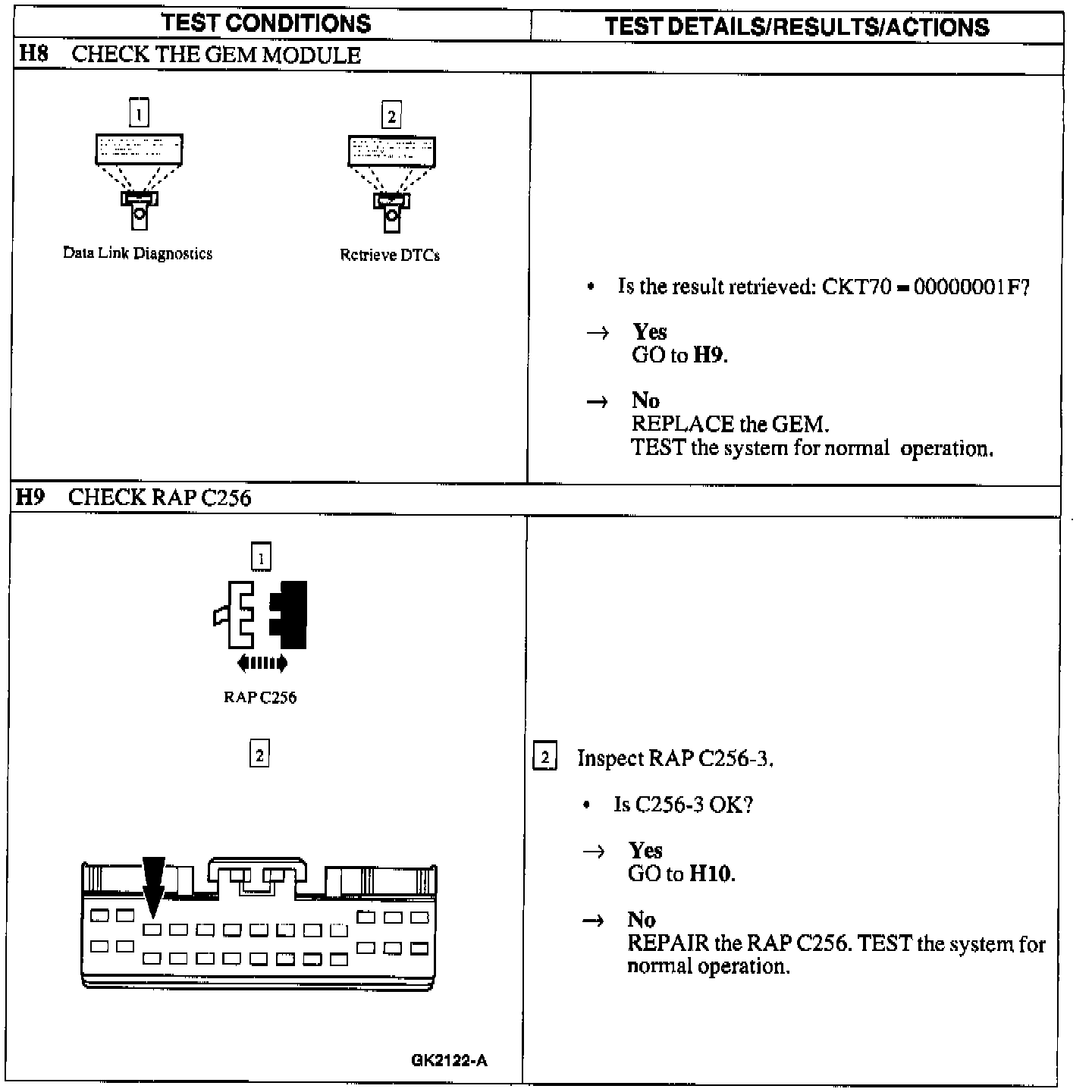

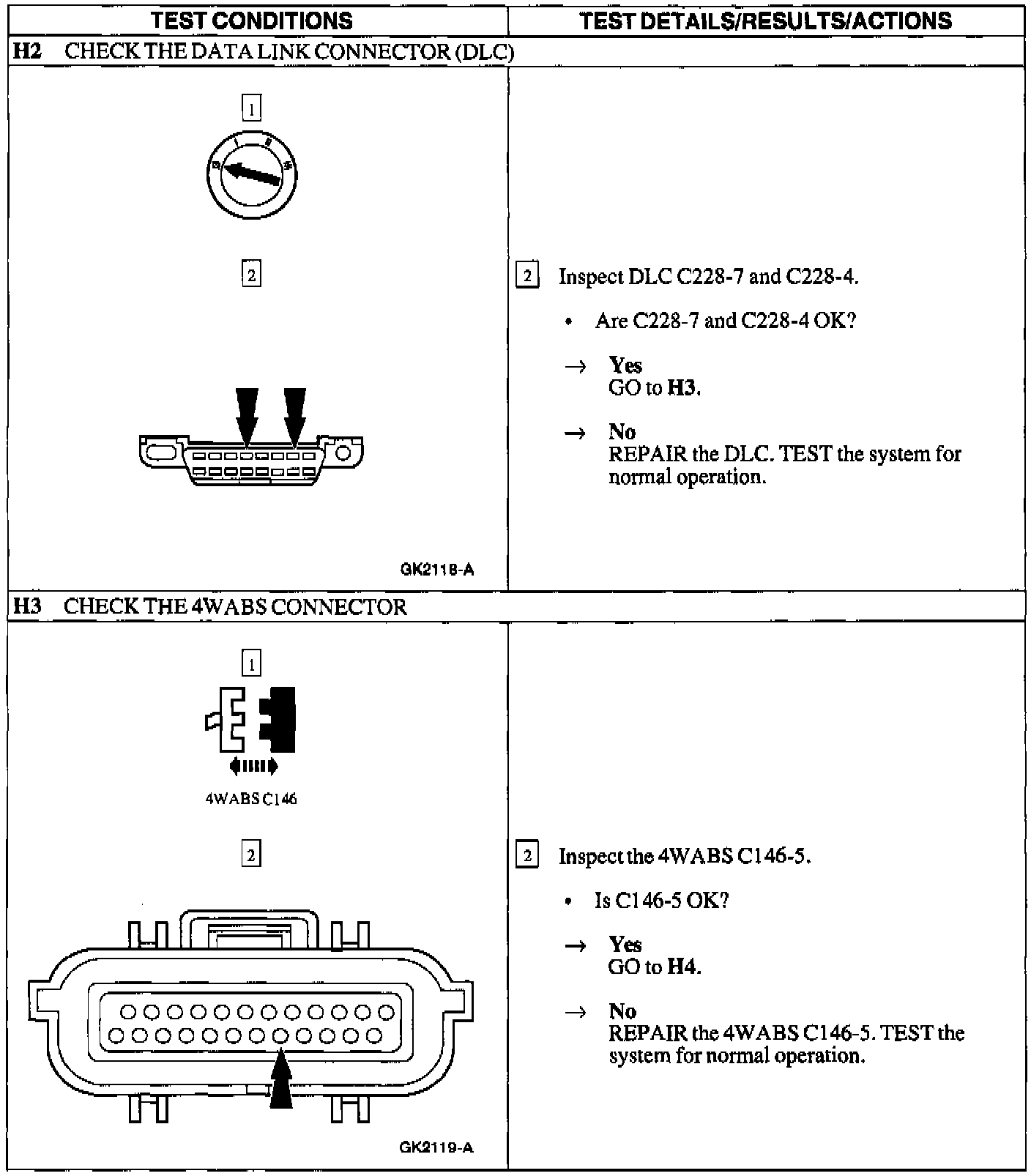

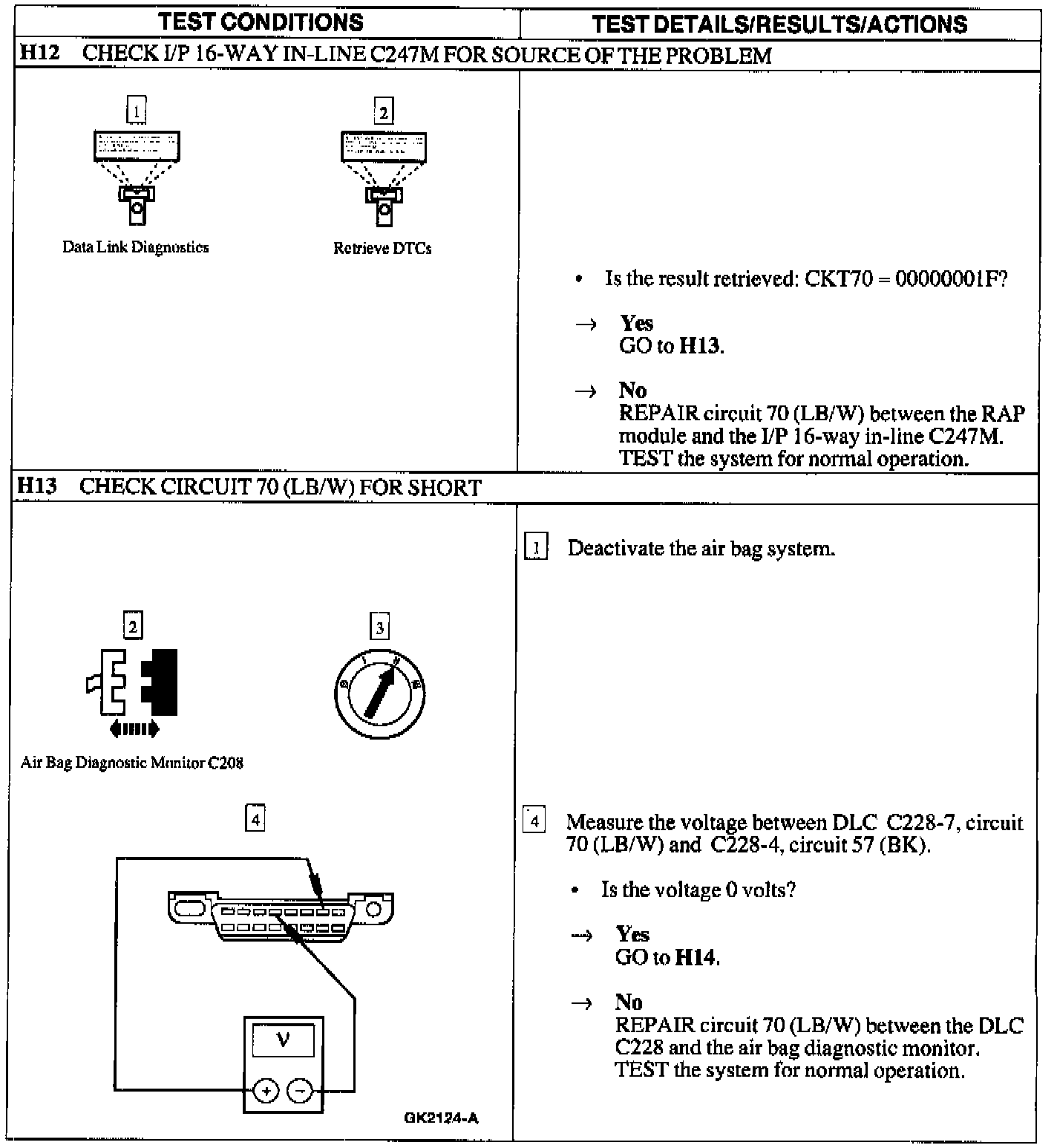

H: No Module/Network Communication on ISO 9141 Link Ckt

H1:
