Digital Transmission Range Sensor
>>
Except Vehicles Built After 6/24/96
Except Vehicles Built After 6/24/96

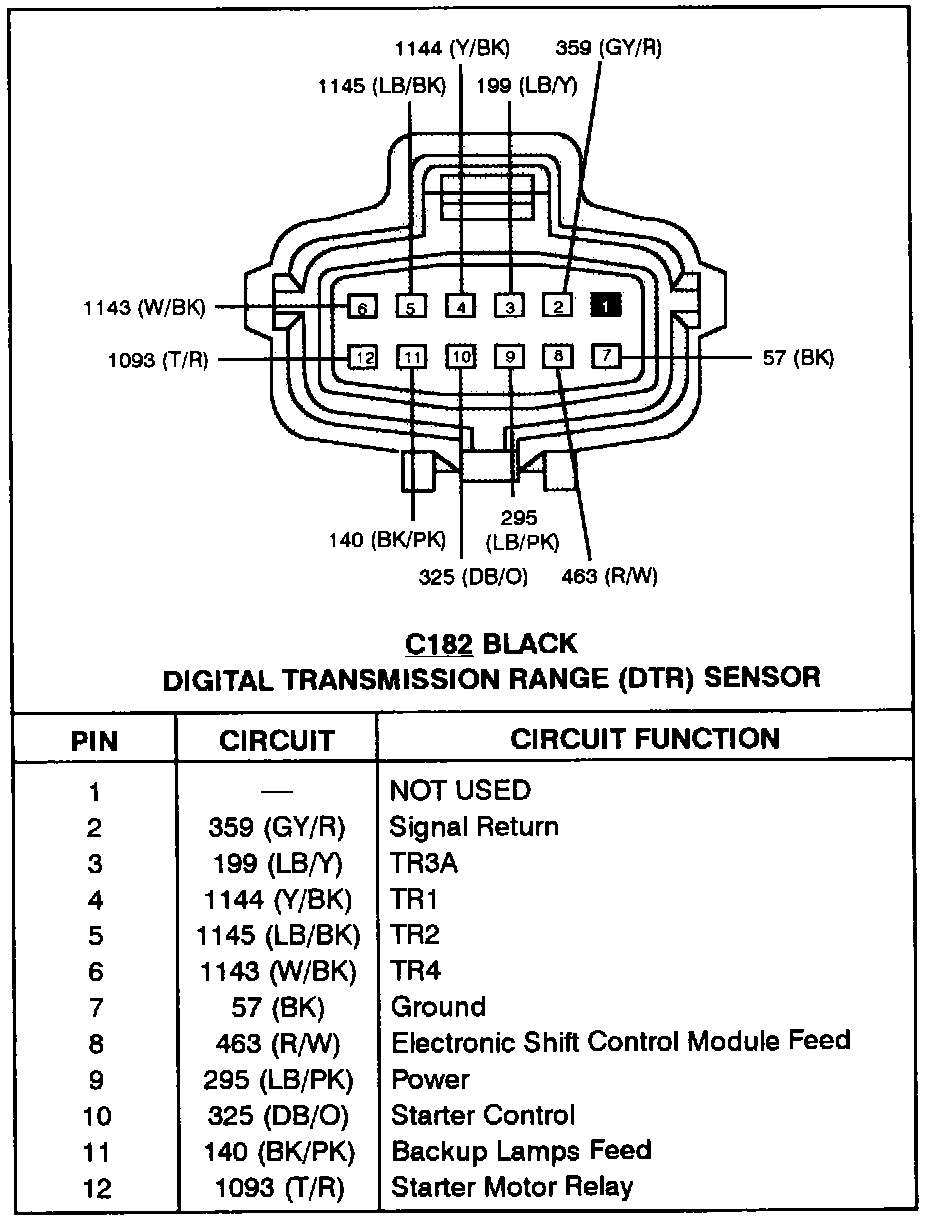

Digital Transmission Range Sensor:
