Installation

INSTALLATION

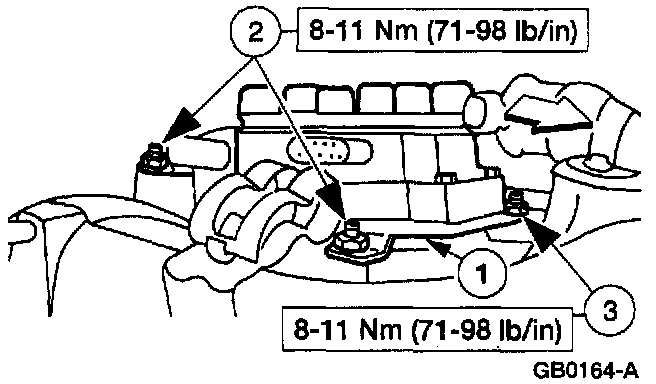

1. Install the ignition coil.
1 Position the ignition coil.
2 Install the two ignition coil nuts.
3 Install the ignition coil stud bolt.





2. Install the accelerator cable bracket.
1 Position the accelerator cable bracket.
2 Install the accelerator cable bracket nut.
3 Install the accelerator cable bracket bolt.





3. Connect the ignition coil electrical connections.
1 Connect the ignition coil electrical connector.
2 Connect the radio capacitor connector.
3 Squeeze the locking tabs (A) and connect the six (B) ignition cables.





CAUTION: Spark plug wires must be connected to the proper ignition coil terminal.
