Exhaust Manifold









TORQUE SPECIFICATIONS
Exhaust Manifold Bolts and Stud Bolts: 20-30 Nm (15-22 ft. lbs.)

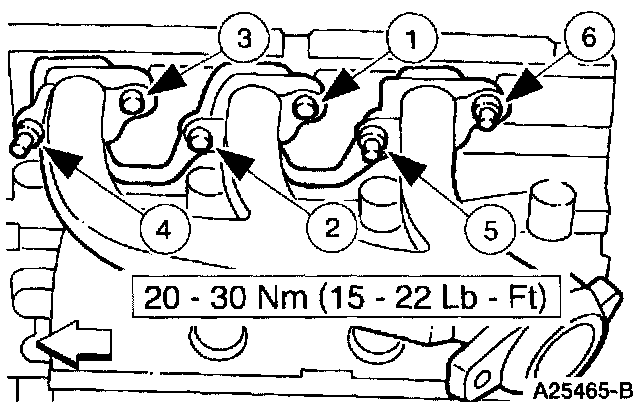

NOTE: Refer to the illustrations for the proper tightening sequences.
