Clutch Switch: Service and Repair

REMOVAL





1. Disconnect the Clutch Pedal Position (CPP) switch electrical connector.

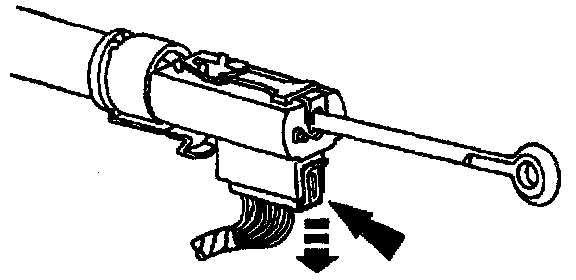

2. Release the CPP switch from the orientation clip.

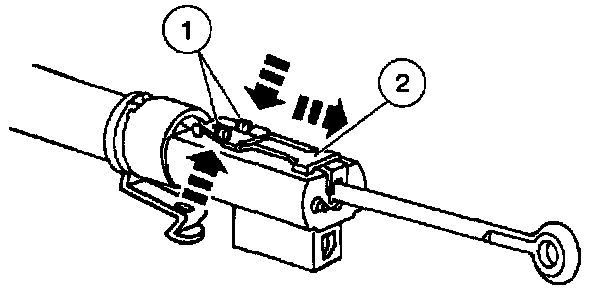

3. Remove the plastic retainer.
1 Push the lock tabs together.
2 Slide the plastic retainer off the CPP switch.





4. Remove the CPP switch.

INSTALLATION
1. To install, reverse the removal procedure.
