Wiper Control Module: Locations

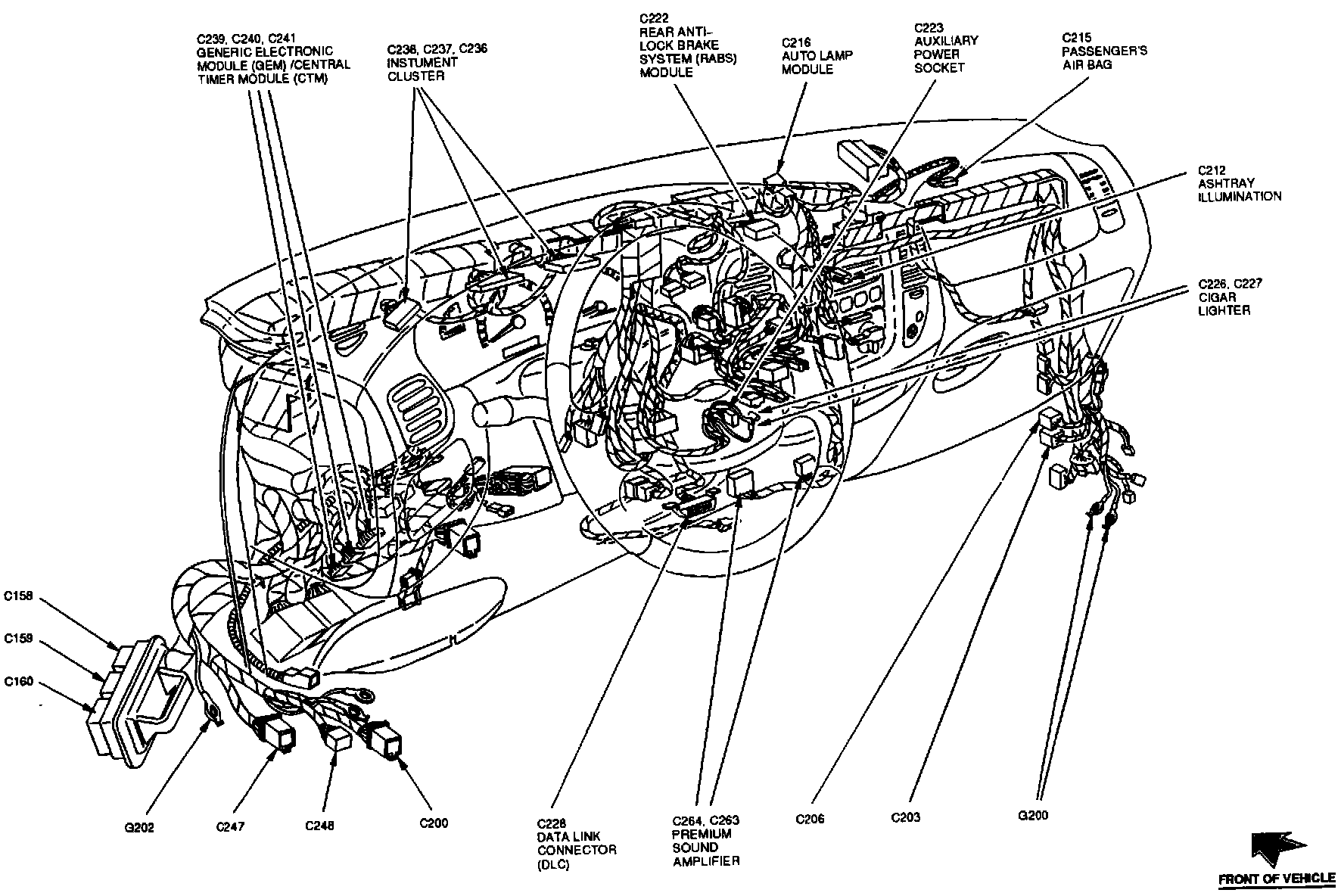

Instrument Panel View:





The Central Timer Module is located behind center of the instrument panel.
