Test D: System Does Not Disarm After Activation

D1 - D3:




D4 - D6:




D6 - D7:




D8:

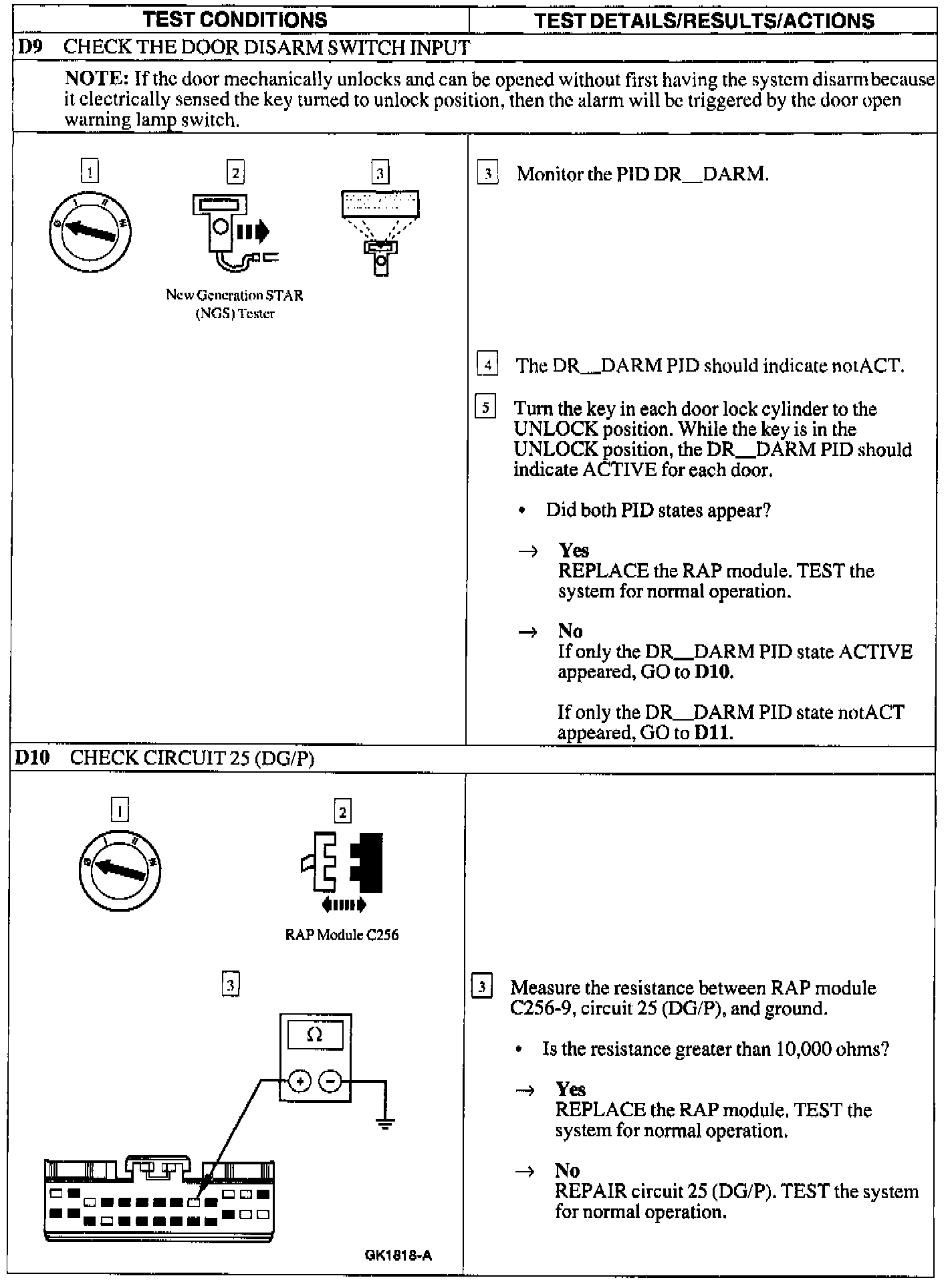

D9 - D10:




D11:
