N5

N5 CHECK REAR BRAKE ANTI-LOCK SENSOR

- Disconnect the RABS sensor.

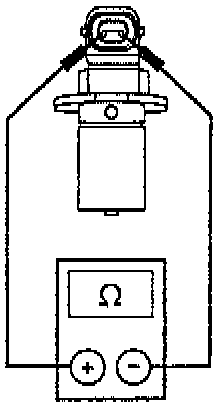

Rear Brake Anti-Lock Sensor Check:

- Measure the resistance between the rear brake anti-lock sensor terminals.

> Yes
Repair open in circuit 519 (LG/BK), and/or circuit 523 (R/PK). Repeat System Pre-Check. Initial Inspection and Diagnostic Overview

> No
Replace the RABS Sensor.
