Neutral Start Relay (Inhibitor Relay): Locations
Instrument Panel View:

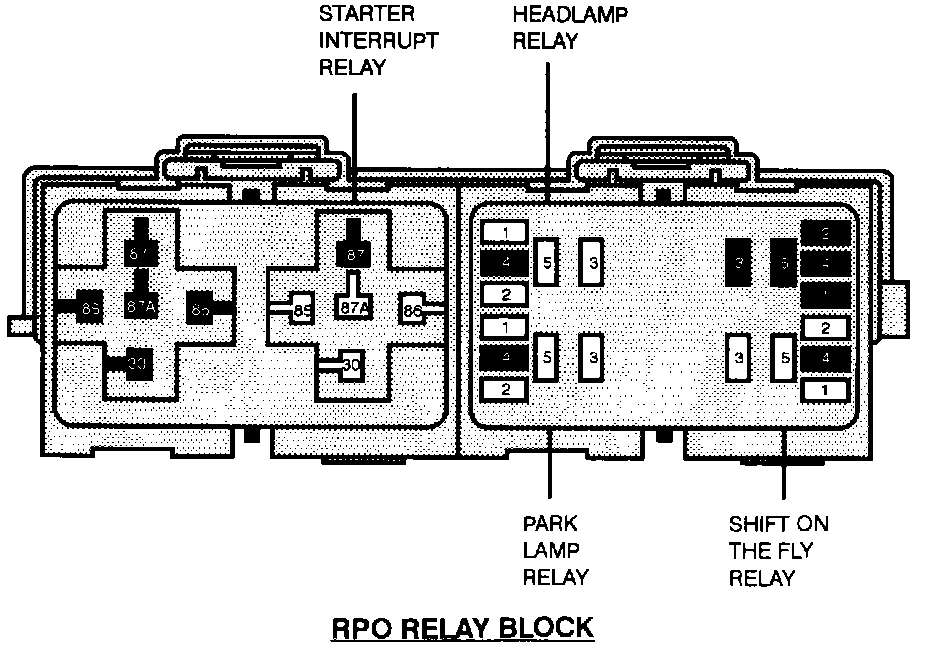

Regular Production Option Relay Block:
The Starter Interrupt Relay is located in the regular production option Relay Block.
